Mobile Fall Protection Systems
Standard and custom mobile fall protection systems that can be adapted for multiple applications. For use when maintaining aircraft, railroad cars, industrial equipment, or heavy machinery.
Past custom projects include our custom engineered rail car system and railcar stand that provide fall protection for workers loading and unloading railcars. These rail car systems provide safe access to the top of a train and are designed to be positioned where needed. The gate opens and closes with the push of a button or by winch, making operation quick and safe. Workers are attached to an overhead lifeline to ensure proper fall protection while loading and unloading.
Road Ranger mobile fall protection systems provide the necessary anchorage point right where you need it, indoors or out and are rated for highway towing up to 100km/h.
Used in conjunction with a full-body harness and self-retracting lifeline, these mobile fall protection systems provide a complete fall arrest system “on the go.”
Fall Protection Regulations in Canada
Canada Occupational Safety and Health Regulations, SOR/86-304, Sections 12.01 to 12.09
12.07 (1) Subject to subsection (2), an employer must provide or put in place a fall-protection system if work is to be performed
(a) from a structure or on a vehicle at a height of 3 m or more;
(b) from a ladder at a height of 3 m or more if, because of the nature of the work, the person performing it is unable to use at least one hand to hold onto the ladder; or
(c) at a height of less than 3 m if the surface onto which the person might fall would present a greater risk of injury than a solid, flat surface.

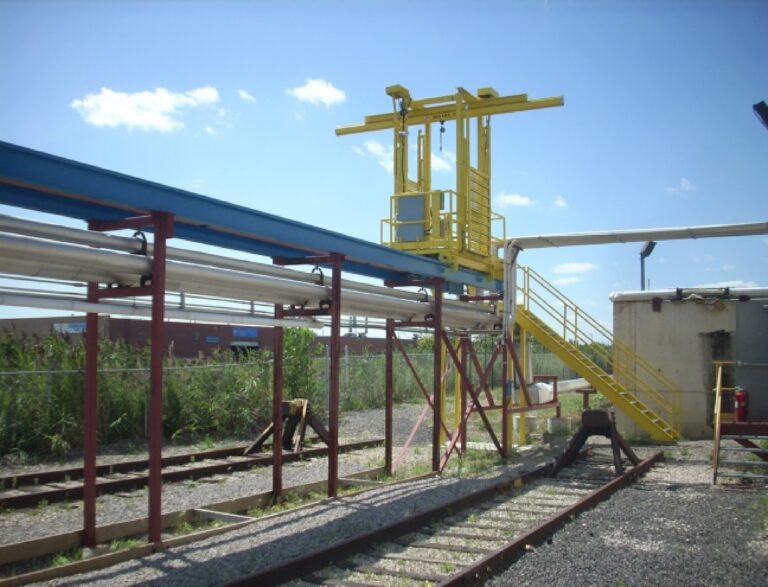

Custom Engineered Rail Car Trolley System

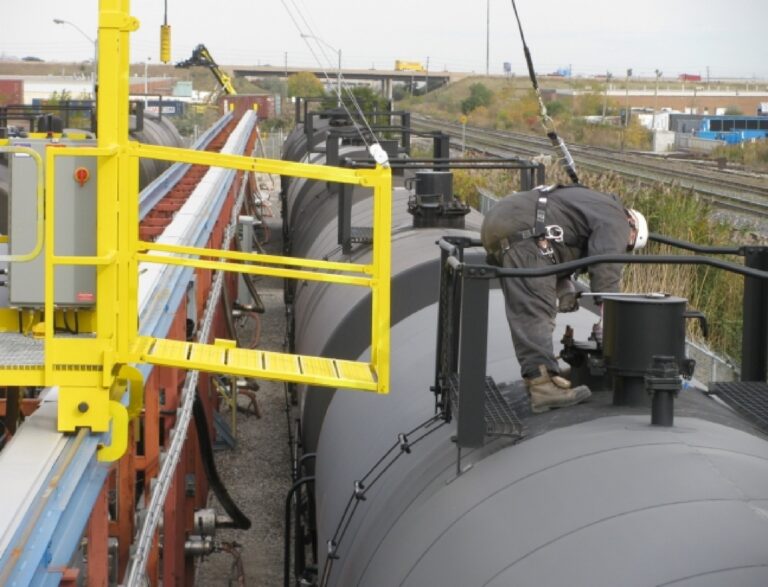

Liftsafe Fall Protection Inc. has designed a custom engineered rail car system that provides fall protection for workers loading and unloading railcars. The rail car system provides safe access to the top of a train and moves on a trolley system that allows the operator to open at multiple points on the track.

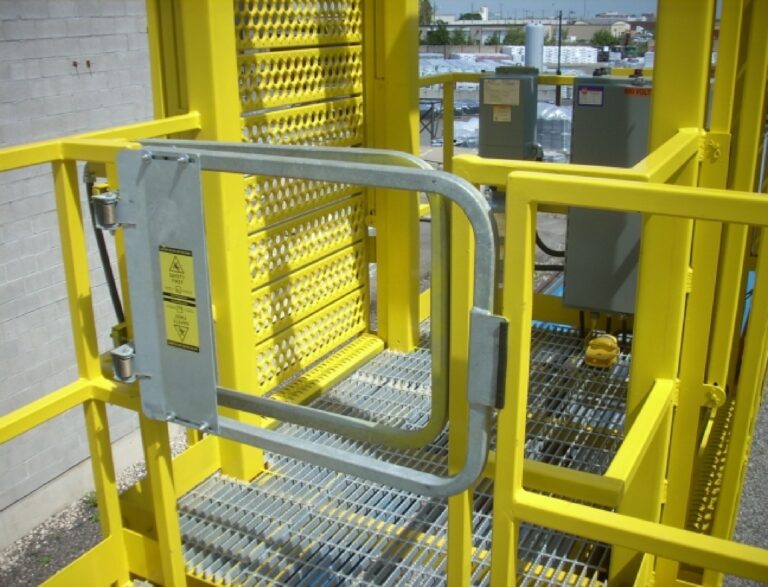

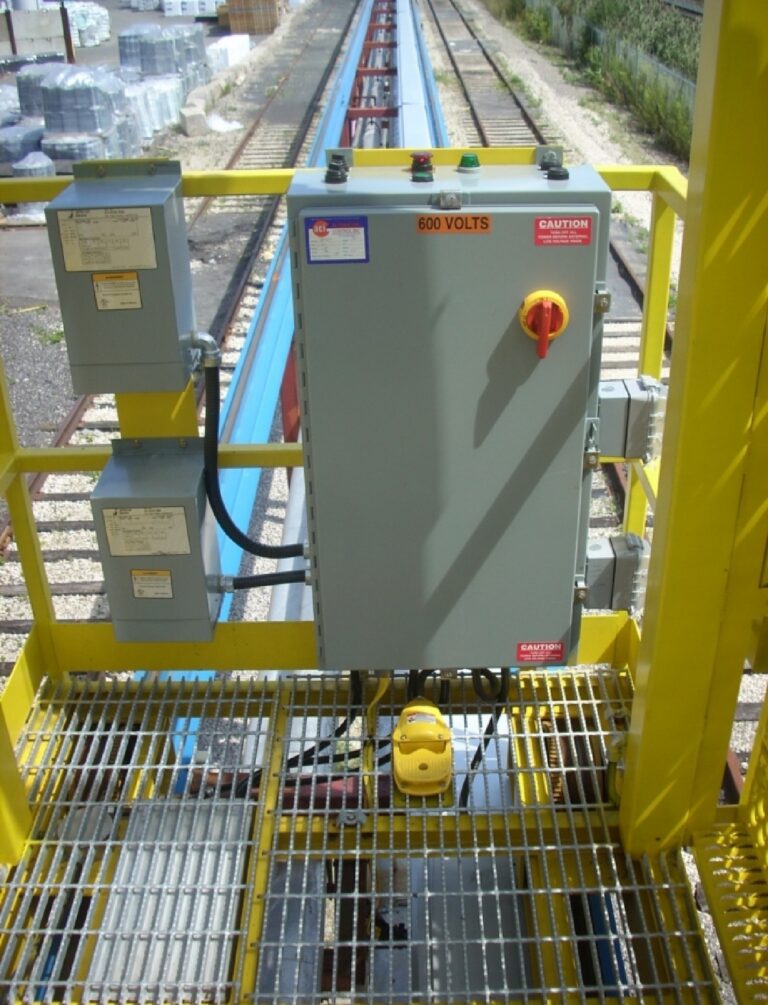

The gate opens and closes with the push of a button making operation quick and safe. Workers are attached to an overhead lifeline to ensure proper fall protection while loading and unloading.
Rail Car Trolley System

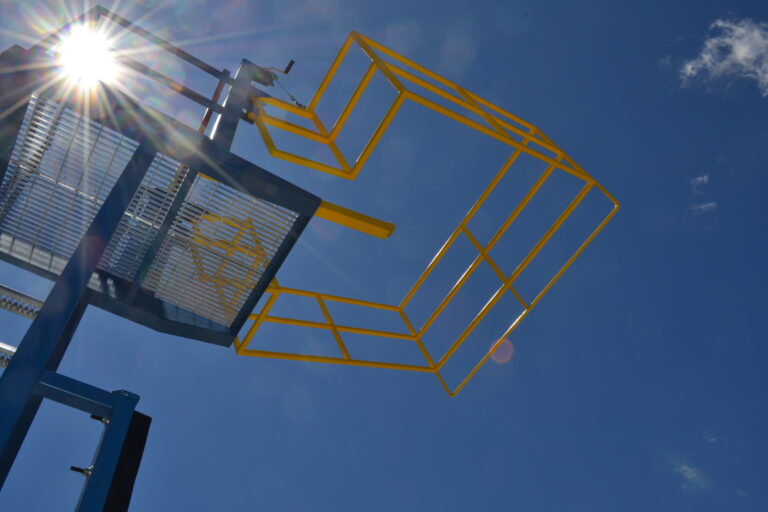

Custom Engineered Rail Car Access Ladder
This custom designed railcar access ladder was designed to allow easy access to the tops of several styles of railcars. The unit uses a ramp access to accommodate different heights of cars. It also comes with a winch-operated guardrail system that lowers down over the hatch area of the railcar.
When cleaning the tanks with the hatch open, users have access to a man-rated davit/retrieval system. This system is incorporated into the main frame and can be used for an emergency extraction and fall protection when entering the tank. The unit can be towed or moved with fork pockets.
Rail Car Access Ladder
Road Ranger, 18, 20, 22 ft Extension
The Road Ranger is a mobile fall protection system that provides the necessary anchorage point right where you need it, indoors or out and is rated for highway towing up to 100km/h and has the option of 18', 20' or 22' of extension.
The sleek, balanced design of this mobile fall protection system allows for easy highway towing and transport around the job site.
Constructed from steel these units have a weight of 3,120 lbs and a weight capacity of 310 lbs with a working area that is 30 degrees from the anchor point.
