Wheel Well and Cargo Access Stands (DF071556-03XP)

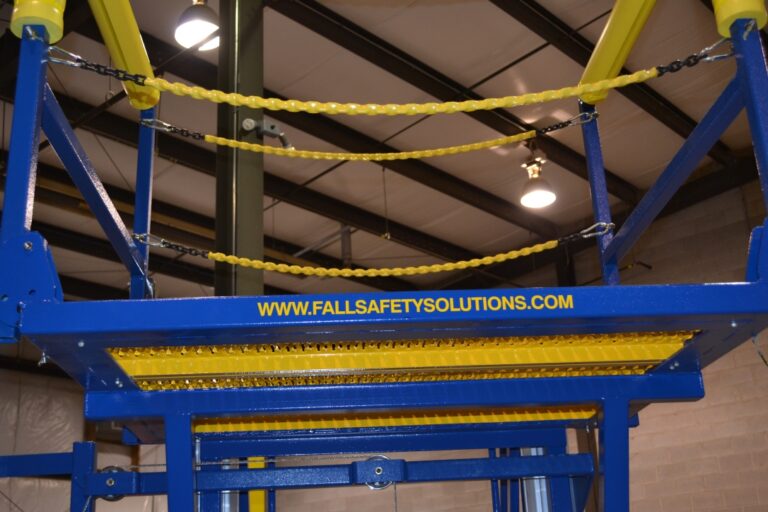

The Aviation Platform Stand XP is designed for maintenance access across a wide range of aircraft, providing a safe platform for two-person use. The lowered position is engineered to clear wheel-well entry points, and the design has been tested and is operational on both Airbus and Boeing wide-body aircraft, including the B757. The stand is in service with multiple operators, MROs, and aircraft manufacturers. Optional telescopic side rails ensure compliant and secure access to forward and aft lower cargo holds. A powder-coat finish ensures corrosion resistance and long-term durability.
The Aviation Platform Stand XP is hydraulically actuated via an ergonomically positioned foot pump and features collapsible guardrails. Anti-fatigue ladder steps further enhance safety and comfort for maintenance personnel.
Our Professional Engineers can design custom models based on your specific requirements. The Aviation Platform Stand XP is designed and tested in accordance with ANSI-ASC A14.7 and BS EN 131.7, and includes CE Certification.
- Air powered pump
- Custom heights and platform sizes
- Telescopic rails
- Tow bar
- Utilities Package
- Lowered front “legs” for the 787 main gear door
- B717
- B727
- B737
- B747
- B757
- B767
- B777
- B787
- A300
- A310
- A318
- A319
- A321
- A320 Family
- A330
- A340
- A350
- A380
- Bombardier CRJ
- Lockheed L-1011
- DC-10/MD-10/MD-11
- E-170, E-190
- Douglas DC-8
- DC-9 Super 80/MD-80
- Custom
KEY FEATURES
Full Fall Restraint
Integrated fall protection to keep technicians secure during maintenance.
Safety First
Professionally designed to ensure safe and reliable operation.
Multi-Functional Design
Adaptable platform configuration for a wide range of aircraft tasks.
Custom Solutions
Tailored to meet specific operational and aircraft requirements.
Safe Maintenance Access
Provides secure and stable access to inspection and service areas.
Compliance
Engineered and tested to meet all aviation and workplace safety regualtions.
Durable Construction
Built from high-strength materials for demanding aviation environments.
Warranty Support
Available warranty options for long-term performance assurance.
Talk to a specialist today
Specifications
| Specification | Details |
|---|---|
| Model # | DF071556-03XP |
| Application |
B717 B727 B737 B747 B757 B767 B777 B787 A300 A310 A318 A319 A321 A320 Family A330 A340 A350 A380 Bombardier CRJ Lockheed L-1011 DC-10/MD-10/MD-11 E-170 E-190 Douglas DC-8 DC-9 Super 80/MD-80 Custom |
| Movement | 2 Persons |
| Towing speed | 10 KPH/6 MPH |
| Footprint | 92″ x 105 1/2″ / 233.6cm x 267.9cm |
| Shipping | 92″ x 80″ x 105 1/2″ x 1,400lbs / 233.6cm x 203.2cm x 267.9 x 635kg |
| Lowered Height |
Low: 73″ / 185.4cm High: 103″ / 261.6cm |
| Weight Capacity | 300 kg/660 lbs |
| Certifications |
ANSI-ASC A14.7 BS EN 131.7 CE DIN EN 12312-8 EN 1915-1 |
| Material |
Steps: Aluminum Frame: Steel |
| Finish | Powder Coated Finish |
| Number of Users | 2 Users |
| Caster Details |
Back: 8 / 20.3cm Split Castor with Brake and Swivel Lock Front: 6 / 15.2cm with Swivel |
| Controls | Hydraulic Foot Pump |
| Fully Extended | Ladder: 56 Strokes |
| Fall Restraint Anchor Points | Equipped |
| Padding Material | Equipped |
Regulations & Certifications
| OSHA |
| ANSI |
| BS EN 131.7 |
| CE |
| DIN EN 12312-8 |
| EN 1915-1 |
Your Perfect Solution Awaits!
PROJECTS
Custom Nose Dock and Jib Crane System for Aircraft Windshield Replacement
Needing to boost productivity while also keeping the workspace safe, a major Canadian airline teamed up with Liftsafe to craft a solution for safely performing windshield changes on large aircraft.
Engine Access Stand built for B777 Aircraft at Air Canada
Tested and operational at Air Canada; the Engine Access Stand has received exceptional reviews as this aircraft safety solution solved for the clients need to (a) immediately address their safety concerns (b) offer minimal impact to their hangar footprint and (c) could be easily moved/stored by one employee.

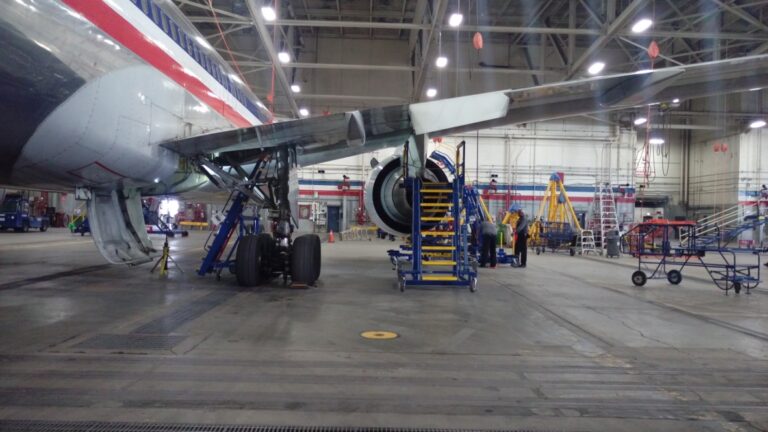

Aviation Platform Stand built for 767 and A300 Aircraft
