Wall Mounted Truck Netting Systems (Pit Netting)

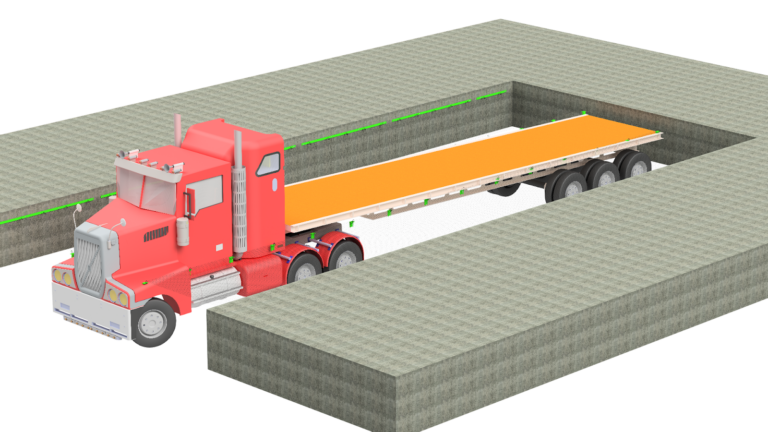

Wall mounted flatbed truck netting system rendering

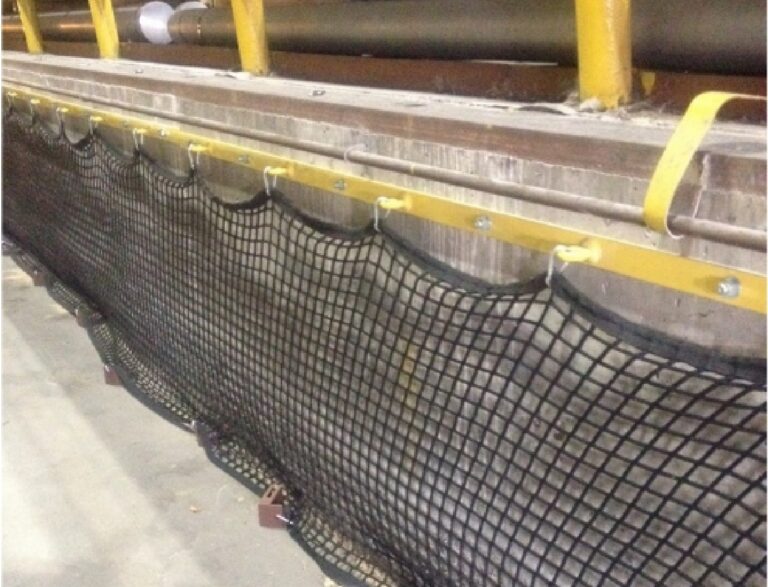

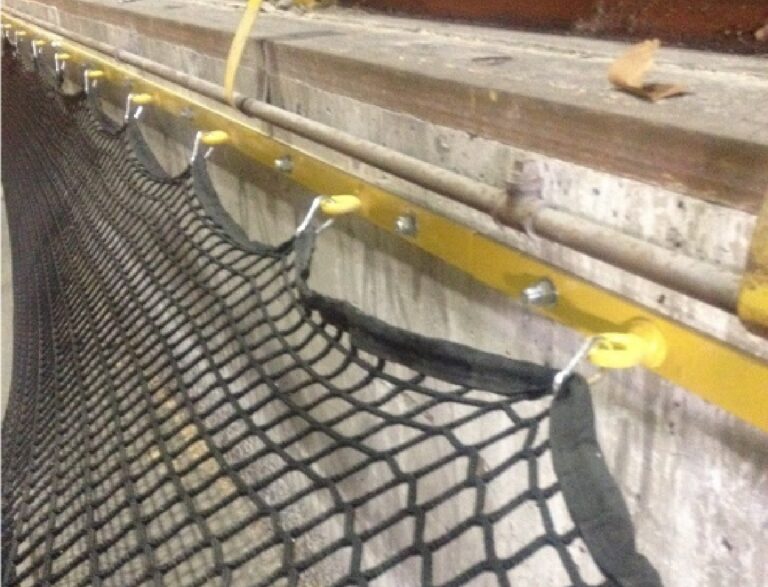

The Wall Mounted Truck Netting System, also known as our “Fill in the Gap System,” protects small gaps between the shop floor and trailer bed in recessed bay applications where a post and net system is not suitable. The nets are attached to the facility wall by cable or a flat bar/pad eye setup. The net then hangs from the attachment hardware and is attached to the trailer with stake pockets when a flatbed is in place. Recessed bay applications can be particularly dangerous to workers, and our system ensures that all facility areas are protected.

Components

Netting Specifications

Specification Details
Product Name Truck Safety Netting
Manufacturer Liftsafe Fall Protection Inc.
Safety Standards Compliance OSHA
MOL ANSI WorkSafeBC
OBC
NBC CSA
BS EN
CE Certification
Netting Panel 3000 lbs net – 2” square, industrial safety netting
Netting Colour Black
Custom colours are available for large orders
Netting Material 3000 lbs net – nylon
Netting Cable 1/4” aircraft cable
Netting Design Knotless netting
Sewn rope border
U.V. protection
Rigging Components Snap hooks
Stake pockets
Net panel
Flat bar along length of bay

Netting Safety and Regulations in Canada

Our netting panels are treated to meet NFPA 701 standards for fire-retardancy and have been tested and rated in accordance with ANSI A10.11 and OSHA safety standards. This includes the complete system with all of the hardware installed onto a racking system and tests made to simulate a real-case product falls.

To ensure compliance with regulations, we advise following safety net installation standards. This includes obtaining certification from qualified installers or engineers, conducting testing procedures, maintaining thorough records, and providing worker training.

A comprehensive fall protection plan must consider work nature, site or facility conditions, load capacity, and manufacturer specifications. Proper installation, maintenance, and regular inspection are critical for compliance and effectiveness.

Accumulated debris can compromise the functionality of safety nets and create hazards. Work operations should pause promptly to remove debris or any fallen objects to maintain optimal net performance.

Resources

Netting Catalogue

Details about all of our netting systems can be found in our Liftsafe Netting Catalogue along with safety statistics and other info.

Truck Netting
Info Sheet

Learn more about the features and benefits of our flatbed truck netting systems.

Netting
Overview

Learn the benefits to choosing to provide our safety netting systems to your clients.

Request a Quote

Frequently Asked Questions

Passive fall protection does NOT require any action by people. Examples include: Guardrails, Safety Nets, etc. Active fall protection requires training and direct connection to an engineered fall protection system or anchor point. Examples include: Body Harnesses and Lanyards, Anchor Points, etc.

OSHA 12.10 (1.1), every employer shall provide a fall-protection system to any person, other than an employee who is installing or removing a fall-protection system in accordance with the instructions referred to in subsection (5), who works: (a) from an unguarded structure or on a vehicle, at a height of more than 2.4 m above the nearest permanent safe level; (b) from a temporary structure at a height of more than 6 m above a permanent safe level.

ANSI A10.11 All nets supplied are manufactured and tested in accordance with Industry Standards, and all such netting has been tested to strict ANSI standards as laid out in ANSI A10.11. This includes the complete system with all hardware installed onto a racking system and tests made to simulate a real-case product fall.

Yes, all of our systems include a user manual, custom drawing, and detailed installation instructions. If needed, we offer installation services.

Untested and/or self-fabricated remedies are risky. You are responsible for any accidents relating to the failure of hardware and installation. Incorrect installation could result in a system that does not provide the protection you require.

Netting is used anytime a fall hazard may exist. It is used to protect workers when performing a job on or around a parked flatbed truck.

Get in touch with our sales reps, and they can provide you with a Quote Request Form that is easy to fill out. The form asks for information such as the width of your bays, the height of your rack frames, and the weight of the pallets you are looking to protect.

The amount of space available beside the “typical” trailer location when loading/tarping/etc.

The further away from the trailer you can position the posts, the lower the posts have to be.

Overhead cranes. Do they load from the side, the end or both? If from the side, how high can the posts be without interfering with the loading process?

Connection to the trailer – the standard system requires attachment directly to the trailer while the pivot system does not.

Forklift loading from the side – is this done at all? If so, the trailer safety nets will not work.

Netting Systems

Protecting people and products

Customized systems fit to your facility needs

Protects employees from injury or death from falling objects

Reduces the potential for costly fines and high insurance premiums

Cost effective safety solution

Meets or exceeds all OHSA, MOL, and applicable Canadian safety standards

Safe and reliable engineered solution

Protects passersby from injury or death from falling objects

Reduces the potential for costly litigation
