Roofguard Ladder Guardrail (Fixed Access Ladder Egress)

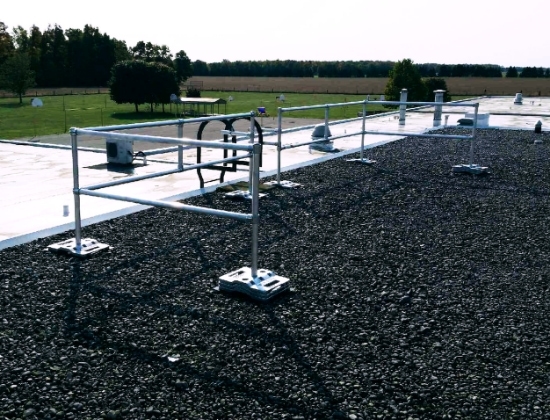

Our Fixed Access Ladder RoofGuard Kit is a non-penetrating system, designed to provide a safe zone for anyone getting on or off an access ladder. Designed with simplicity in mind, this rooftop guardrail system can be quickly and easily assembled and installed onto most rooftops. To ensure quick and easy installation, we designed RoofGuard with a modular design thus allowing for a quick installation that requires no welding, drilling or bolting into the actual roof structure.
Because our guardrail system utilizes a counter-weighted system, there isn’t any cutting required into the existing rooftop surface, meaning RoofGuard’s safety guard railings do not have direct or permanent attachments to your rooftop. As such, this rooftop guardrail system does not require re-sealing, which will ensure that you do not have unexpected leaks.
Our baseplates are lightweight and stable on all roof surfaces, but are also stackable which allows for them to be installed with minimal effort.
LadderGuard has been designed to meet or exceed all major North American safety standards/regulations including Ontario MOL requirements, ANSI, OSHA, Canadian OHS & WorkSafeBC.
Death of worker results in $100,000 fine for Ontario Company
The Company pleaded guilty to failing to ensure workplace safety standards were met, as outlined in the Ontario Occupational Health and Safety Act.
Companies are required to protect their workers with a guardrail system or another fall prevention method.
The Ontario man succumbed to his injuries and passed away less than two weeks later.
Do the right thing; protect your employees/company with a passive fall protection system.

Here's Why the Fixed Access Ladder RoofGuard Kit is the Solution for You:

- Base plates: Galvanized cast steel weights (18kg) with three optional holes for vertical post-placement. Includes carry handles to avoid pinch points. Masticated rubber pads included.
- Aluminum pipe: Aluminum T6-6061, 1.5” SCH 40 – 48mm (1.90 inches) O D.
- Fittings: Aluminum, Magnesium Alloy, 535.
- Fasteners: stainless steel

- All parts and materials are supplied in a single pallet
- Nesting baseplates are portable and allow simple, non-penetrating installation to the rooftop.
- Requires NO penetration of the roof membrane, eliminating the risk of weather damage
- “Passive” fall protection system
- Quick and easy installation
- Modular system is fully customizable

- Canada Labour Code: OH&S – Part 1.S2.5 (1)
- Canada Labour Code: OH&S – Part 12 S 12.07 (1)(2)(a)
- Canada Labour Code: OH&S – Part 12 S 12.07 (1)(2)(b)
- Canada Labour Code: OH&S – Part 12 S 12.07 (1)(2)(c)
This system is designed to meet or exceed all major governing bodies fall protection requirements.

See a full listing of our RoofGuard product line.
Frequently Asked Questions
Are guardrails needed at fixed access ladder openings?
- A ladder opening is one of the most dangerous points on a rooftop as it is a transition point between the roof and the ladder. When entering and exiting your roof (while getting on and off a ladder) workers are within six feet of an unprotected edge if a guardrail system or lifeline is not in place.
Does LadderGuard attach to your fixed access ladder?
- Yes. Fixed access ladders connect to LadderGuard either through standard parts that can be provided or in some cases through custom fabricated connections.
Are gates available for ladder entrances?
- Yes. Self closing, spring loaded gates can be equipped to your LadderGuard system.
Is this something I could install on my own?
- We strongly recommend that any RoofGuard System is installed by one of our certified installers to ensure proper installation. Systems come with an installation manual, engineered drawings and can be performed with one tool.
Does LadderGuard integrate with guardrail systems?
- Yes. LadderGuard will integrate with RoofGuard, since it is modular and fully customizable, to create a fully compliant system for workers who are working at heights.
Which regulations does LadderGuard cover?
- Canada Labour Code – Occupational Health and Safety Regulations – Part 12 S 12.07(1)
- Ontario Ministry of Labour – Construction Regulation 213/91 – Section 26
- Ontario Ministry of Labour – Industrial Establishments 851 – Section 13 (1)
- See the RoofGuard Fall Protection Guide for a full list of regulations by province.
What do I need to provide to get a quote?
- Contact us, and we will get in touch to walk you through what you need to provide in order to generate an accurate quote. Dimensions, blueprints and images are all helpful in determining the details of what your roof requires.
Request a Quote
Passive Vs Active Fall Protection
When a hazard assessment is completed, and a need for fall protection is established, there are two general types of systems that can solve the need and keep the workers safe, passive or active fall protection.
Passive Fall Protection
Active Fall Protection
The Hierarchy of Fall Protection Solutions
Elimination of Hazards
- Whenever possible, remove the fall hazard itself.
- If there is no fall hazard, there’s no fall.
Passive Systems
- Do not require the use of Personal Protective Equipment or active participation from the worker.
- Include Guardrails or Netting Systems.
- A preferred choice for its ease of use without the need for additional training and PPE.
Fall Restraint
- Uses personal fall arrest equipment (harness, lanyard, a. anchor point) to stop the user from reaching the edge.
- This type of ttying-offi p the user from falling in the first place.
Fall Arrest
- When all other solutions are infeasible.
- Fall arrest uses the same equipment as fall restraint but the fall protection equipment engages after the fall happens
- When it engages, the equipment slows the workers descent, bringing them to a safe stop.
