RackGuard Netting Systems

RackGuard netting is a cost-effective, engineered solution designed to make warehouses safer for employees and visitors alike. RackGuard is installed on the back of storage racking to protect aisle ways, work areas and machinery from products that may become dislodged and fall to the ground below.

RackGuard is an engineered “system” consisting of load-rated netting panels, custom engineered offset brackets, engineered frame extensions (when needed), aircraft cable and related rigging hardware. The netting panels are custom fit to accurately protect each and every racking layout. Netting panels that are made-to-measure will provide the safest option for back-of-rack protection. RackGuard netting systems have been designed and tested specifically for industrial racking applications. RackGuard has different netting materials for different load requirements depending on pallet load weights.

Flushmount Rack Netting Systems (RackGuard)

Flushmount RackGuard Netting Systems are designed to protect employees from falling products. The netting of these systems sits flush to the racking system, helping to ensure that no product will fall. Ideal for applications where there is no pallet overhang or product is loaded by hand.

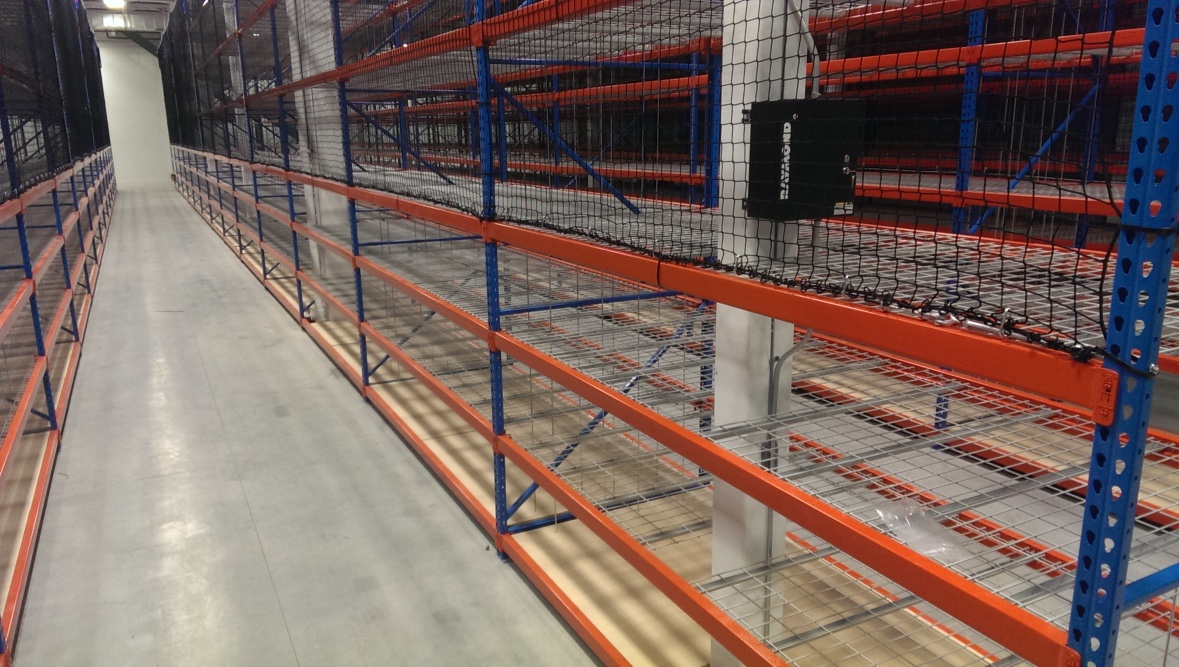

Flushmount RackGuard Netting Installation
Standard offset rack netting

Standard Offset Rack Netting Systems (RackGuard)

RackGuard netting systems typically use engineered offset brackets to run the cables and allow the netting panels to be installed a certain distance from the face of the racking. This allows for pallet/product overhang. Standard offsets have an allowance for 4” or 6” settings, but offsets are available in sizes ranging from 2” up to 12”.

Flue Space Rack Netting Systems (RackGuard)

The flue space between racking systems is often an area that sees a high volume of product falls and damages that workers are unable to access. Our Rack Netting System can be installed within this space to help reduce product loss and keep products from getting mixed up with another pallet load.

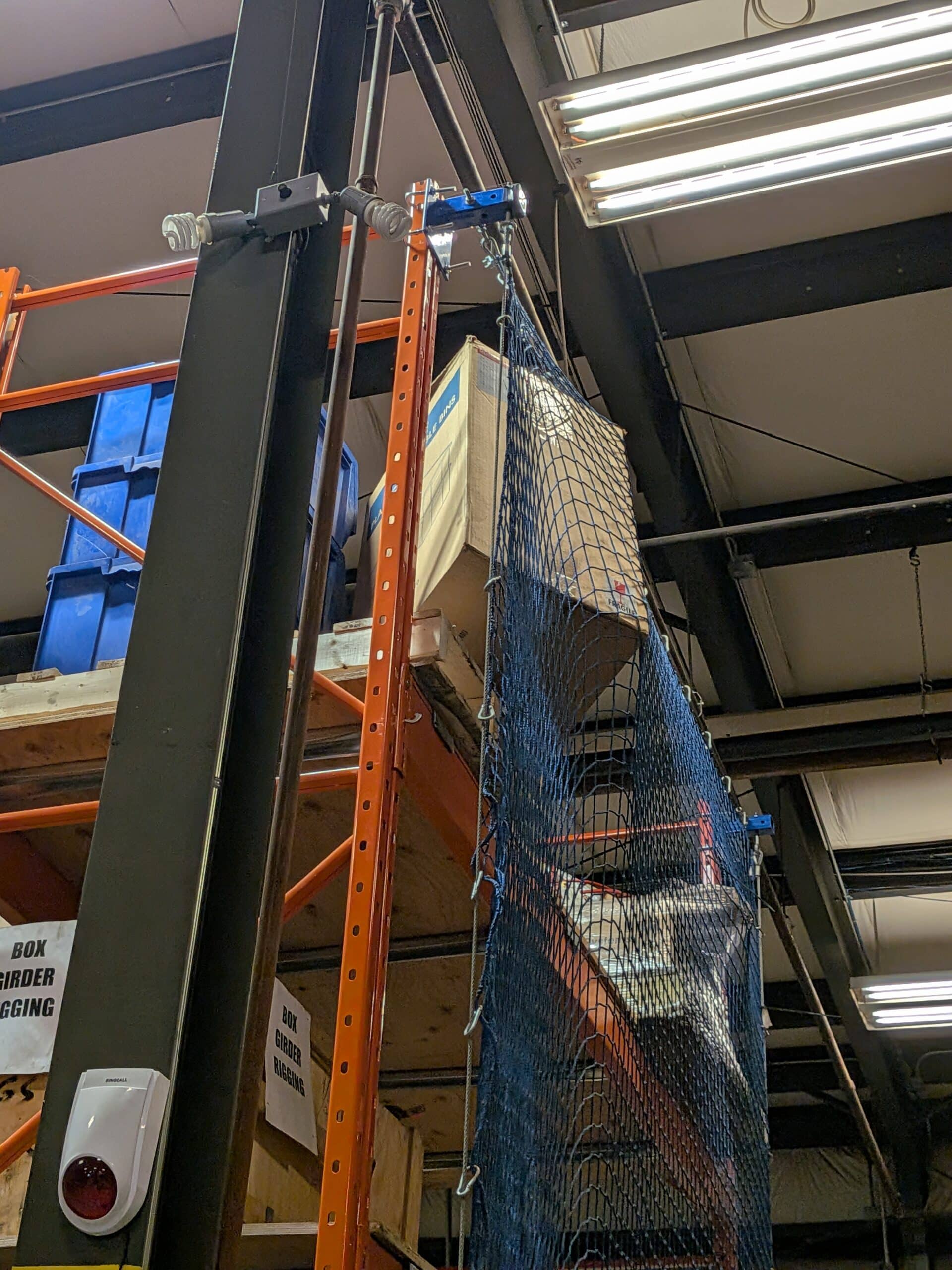

Flue space rack netting
Horizontal safety netting in factory

Horizontal Rack Netting Systems (RackGuard)

Our horizontal rack netting systems are designed to ensure the safety of workers who have to enter racking bays to access product and are at risk of having a box fall from an upper level. This custom configuration utilizes specific brackets for mounting inside the rack. Out custom horizontal netting brackets mount inside the racking system to hang our standard 2500 lbs pallet net. Custom options are available.

Netting Specifications

Specification Details
Product Name RackGuard Industrial Safety Netting
Manufacturer Liftsafe Fall Protection Inc.
Safety Standards Compliance OSHA
MOL ANSI WorkSafeBC
OBC
NBC CSA
BS EN
CE Certification
Netting Panel 2500 lbs net – 2” square, industrial safety netting
3000 lbs net – 2” square, industrial safety netting
6000 lbs net – 2-½” square, fall arrest netting
Netting Colour Black
Yellow
Custom colours are available for large orders
Netting Material 2500 lbs net – nylon
3000 lbs net – nylon
6000 lbs net – HTPP
Netting Cable 1/4” aircraft cable (for up to 3000 lbs pallets)
3/8” (3500 – 5000 lbs pallet load)
Netting Design Knotless netting
Sewn rope border
U.V. protection
Rigging Components 1/4 Galvanized Cable
Wire Rope Clips
Thimbles
Turnbuckles
Eyebolts
Safety Snap Hooks
Offset Brackets Available offset brackets: 2”, 3”, 4”, 6”, 9”, 10”, 12” & custom sizes
Flush mount options available
Extension Bracket Available from 1 ft up to 6 ft in height

Netting Safety and Regulations in Canada

Our netting panels are treated to meet NFPA 701 standards for fire-retardancy and have been tested and rated in accordance with ANSI A10.11 and OSHA safety standards. This includes the complete system with all of the hardware installed onto a racking system and tests made to simulate a real-case product falls.

To ensure compliance with regulations, we advise following safety net installation standards. This includes obtaining certification from qualified installers or engineers, conducting testing procedures, maintaining thorough records, and providing worker training.

A comprehensive fall protection plan must consider work nature, site or facility conditions, load capacity, and manufacturer specifications. Proper installation, maintenance, and regular inspection are critical for compliance and effectiveness.

Accumulated debris can compromise the functionality of safety nets and create hazards. Work operations should pause promptly to remove debris or any fallen objects to maintain optimal net performance.

Resources

Netting Catalogue

Details about all of our netting systems can be found in our Liftsafe Netting Catalogue along with safety statistics and other info.

RackGuard
One-Pager

Discover why our RackGuard netting systems are the best warehouse safety solution.

Netting
Overview

Learn the benefits to choosing to provide our safety netting systems to your clients.

Request a Quote

Frequently Asked Questions

For storage racks, we offer different lengths of offset brackets to allow our systems to fit in the tightest of spaces. Our extension brackets are also available from 1 ft up to 6 ft in height to add attitional storage space to the top of rakcs.

Our netting is designed to catch any fallen product or pallet without any damage to your racking. Wire mesh is typically connected directly to your racks and doesn’t have flexibility. Over time, as equipment or products hit against the wire, it can get damaged and put extra strain on your racking.

Yes, all of our systems include a user manual, custom drawing, and detailed installation instructions. If needed, we offer installation services.

Netting is used anytime a fall or falling object hazard may exist. It is used on racks to protect against falling objects, as well as along walkways and isles to protect workers. These systems are often used in the flu space between racks to protect the product itself from falling and being damaged. Safety netting has numerous applications depending on the facility, including barrier protection from stacked storage, upper-level mezzanine protection, and even truck netting fall protection. There are applications in every corner of your facility.

Get in touch with our netting sales reps, and they can provide you with a Quote Request Form that is easy to fill out. The form asks for information such as the width of your bays, the height of your rack frames, and the weight of the pallets you are looking to protect.

Yes, our netting systems are highly customizable to fit your specific dimensions and applications of your facility space. Liftsafe Fall Protection (LFP) has an in-house engineering team that consults with clients to develop customized systems.

Our netting is typically made of high-strength polyethylene or nylon material, ensuring durability and longevity. It’s designed to withstand object impact and provide reliable fall protection depending on the application. Our nets range in weight capacity depending on your application needs.

Our netting panels are treated to meet NFPA 701 standards for fire-retardancy and have been tested and rated in accordance with ANSI A10.11 and OSHA safety standards. This includes the complete system with all of the hardware installed onto a racking system and tests made to simulate a real-case product falls.

To ensure compliance with regulations, we advise following safety net installation standards. This includes obtaining certification from qualified installers or engineers, conducting testing procedures, maintaining thorough records, and providing worker training.

A comprehensive fall protection plan must consider work nature, site or facility conditions, load capacity, and manufacturer specifications. Proper installation, maintenance, and regular inspection are critical for compliance and effectiveness.

Accumulated debris can compromise the functionality of safety nets and create hazards. Work operations should pause promptly to remove debris or any fallen objects to maintain optimal net performance.

Our team provides safety nets in the exact sizes you need. Our clients will be required to measure from one anchorage point to the next.

Our team provides safety nets in the exact sizes you need. You will be required to measure from one anchorage point to the next for optimal installation and performance.

Netting Systems

Protecting people and products

Customized systems fit to your facility needs

Protects employees from injury or death from falling objects

Reduces the potential for costly fines and high insurance premiums

Cost effective safety solution

Meets or exceeds all OHSA, MOL, and applicable Canadian safety standards

Safe and reliable engineered solution

Protects passersby from injury or death from falling objects

Reduces the potential for costly litigation
