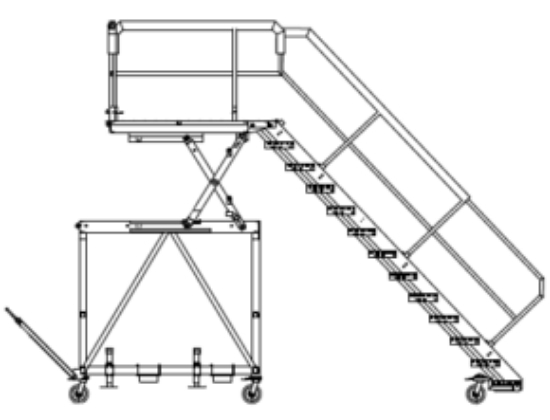

Engine Access Side Scroll Stand (DF071562-02)

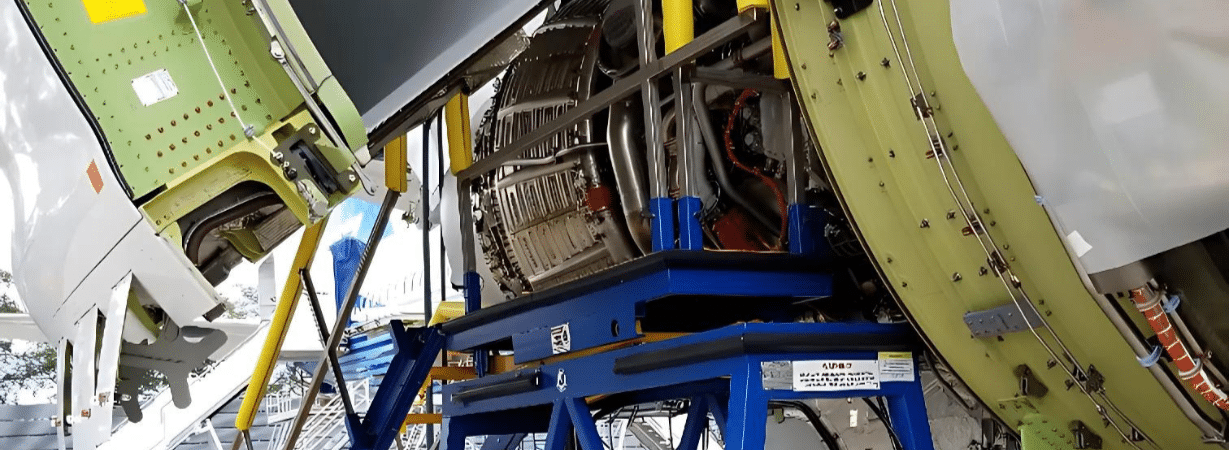

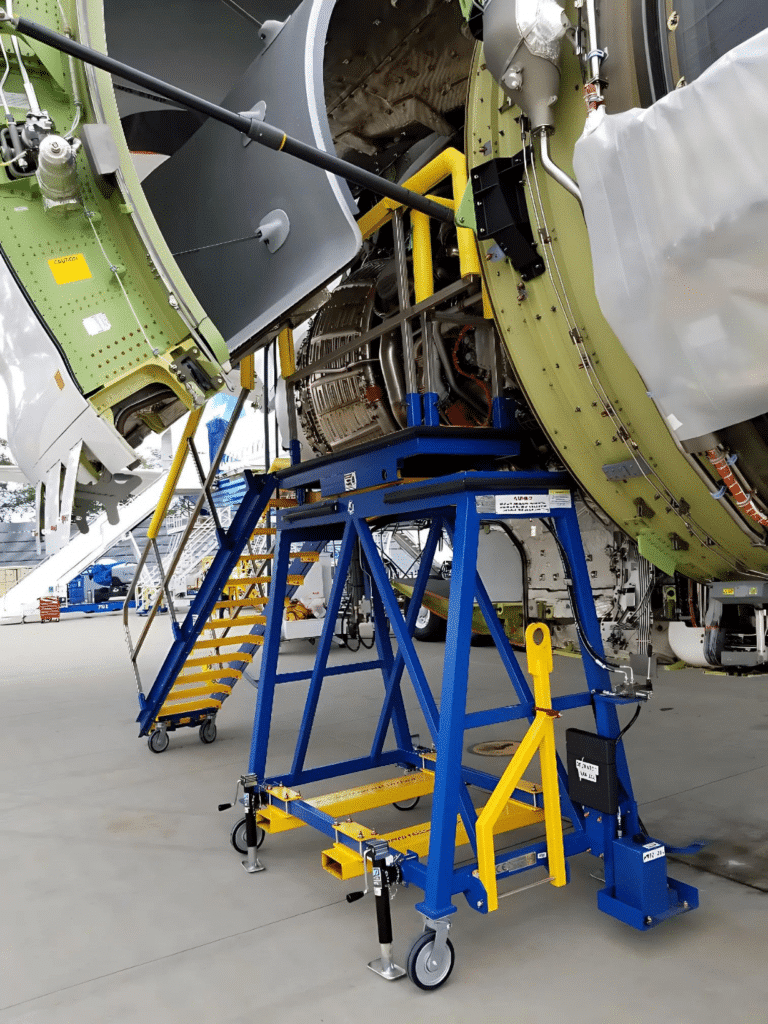

This engine access scroll stand is designed to access under C-duct engine core areas on large engine wide body aircraft. The engine access scroll stand integrates removable/ adjustable hand rails which allow for inboard or outboard use.
The side scroll stand is hydraulically actuated and vertically adjustable, providing a platform for two technicians to work on the engine core and pylon disconnect areas. The engine access side scroll stand contains a variety of safety features for workers, as well as for the aircraft itself. ATACS and rubber bumper pads protect the engine while in use.
Additionally, the stand contains anti-fatigue and anti-slip steps, as well as fail-safe hydraulic cylinder locks for height. All casters contain both brake and swivel locks.
Don’t see it?
Let’s build it.
An innovative and intuitive tool designed to simplify the development of your custom safety solution/access stand.

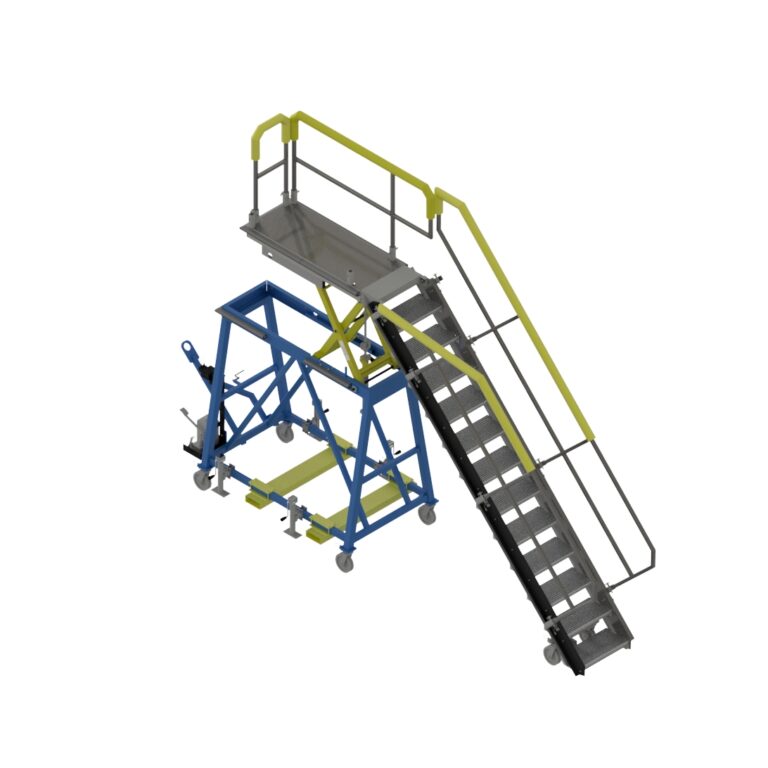

Engine Access Side Scroll Stand (02)
- Part Number: DF071562-02
- Designed for: 777X and 777 legacy
- Movement: 2 Persons
- Towing speed: 10 KPH/6 MPH
- Footprint: 202” x 43.5”/157.5cm x 566.4cm
- Shipping: 62” x 223” / 157.5cm x 566.4cm
- Height: Extended: 165” / 419.1cm, Collapsed: 131” / 332.7cm
- Weight Capacity: 1’000lbs / 450kg
- Certifications: ANSI-ASC A14.7, BS EN 131.7, CE, DIN EN 12312-8 & EN 1915-1
- Stair Angles: Extended: 46 degrees, Collapsed: 30 degrees
- Material: Steel
- Finish: Powder coated finish
- Number of users: 2 user
- Caster Details: 8″ / 20.3cm Split Castor with Brake and Swivel Lock
- Platform size: 23” x 69” / 58.4cm x 175.3cm
- Fall Restraint Anchor Points: Optional
- Padding Material: Equipped
