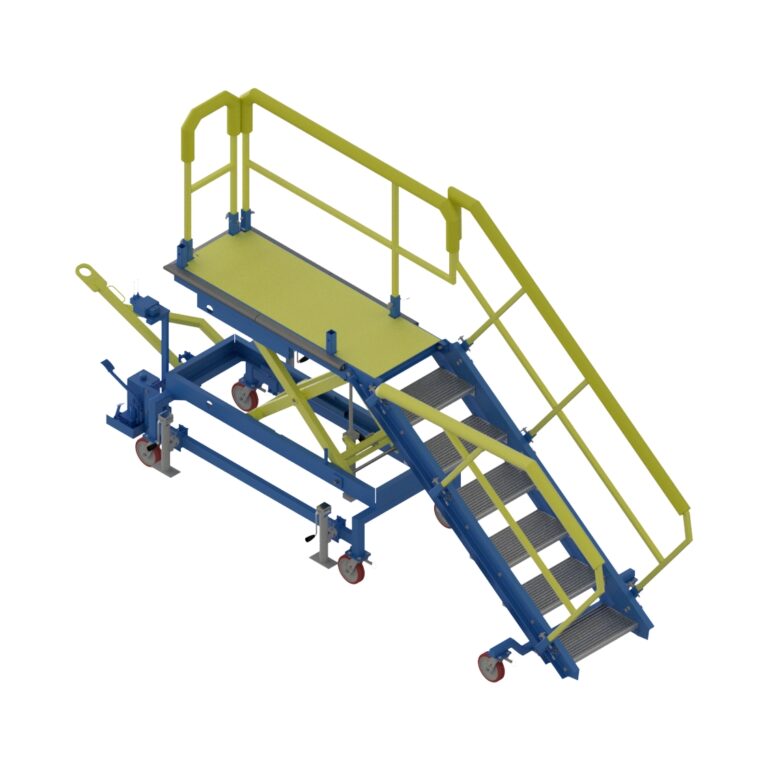

Engine Access Side Scroll Stand (DF071563-01)

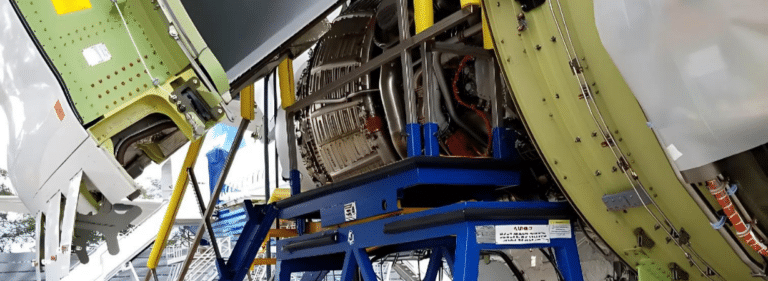

This Engine Access Scroll Stand is designed to access under C-duct engine core areas on large-engine wide-body aircraft. The stand integrates removable and adjustable handrails, allowing for both inboard and outboard use.
The side scroll stand is hydraulically actuated and vertically adjustable, providing a stable platform for two technicians to work on engine core and pylon disconnect areas. The stand includes a variety of safety features for technicians and the aircraft itself, with ATACS and rubber bumper pads protecting the engine during use.
Additionally, the stand features anti-fatigue, anti-slip steps and fail-safe hydraulic cylinder locks for height security. All castors are equipped with both brake and swivel locks for controlled positioning.
- Air powered pump
- Custom platform size and height ranges
- Fall restraint anchor points
- Utilities kit
- B787
- A330
- A350
- Custom
KEY FEATURES
Full Fall Restraint
Integrated fall protection to keep technicians secure during maintenance.
Safety First
Professionally designed to ensure safe and reliable operation.
Multi-Functional Design
Adaptable platform configuration for a wide range of aircraft tasks.
Custom Solutions
Tailored to meet specific operational and aircraft requirements.
Safe Maintenance Access
Provides secure and stable access to inspection and service areas.
Compliance
Engineered and tested to meet all aviation and workplace safety regualtions.
Durable Construction
Built from high-strength materials for demanding aviation environments.
Warranty Support
Available warranty options for long-term performance assurance.
Talk to a specialist today
Specifications
| Specification | Details |
|---|---|
| Model # | DF071563-01 |
| Application |
A330 A350 B787 |
| Movement | 2 Persons |
| Towing speed | 10 KPH/6 MPH |
| Footprint | 138” x 44” / 350.5cm 111.8cm |
| Shipping | 159” x 55” / 403.9cm x 139.cm |
| Height |
Extended: 165” / 419.1cm Collapsed: 131” / 332.7cm |
| Weight Capacity | 1’000lbs / 450kg |
| Certifications |
ANSI-ASC A14.7 BS EN 131.7 CE DIN EN 12312-8 EN 1915-1 |
| Stair Angles |
Extended: 37 degrees Collapsed: 18 degrees |
| Material | Steel |
| Finish | Powder Coated Finish |
| Number of Users | 2 Users |
| Caster Details | 8″ / 20.3cm Split Castor with Brake and Swivel Lock |
| Platform size | 23” x 69” / 58.4cm x 175.3cm |
| Fully Extended |
Ladder: 128 Strokes Tilt: 43 Strokes Scissors: 86 Strokes |
| Fall Restraint Anchor Points | Optional |
| Padding Material | Equipped |
Regulations & Certifications
| OSHA |
| ANSI |
| BS EN 131.7 |
| CE |
| DIN EN 12312-8 |
| EN 1915-1 |
