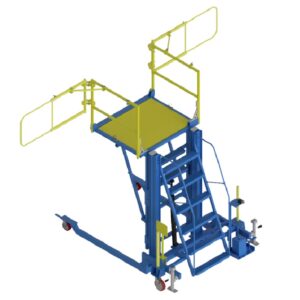

Wheel Well and Cargo Access Stands (DF071556-03)

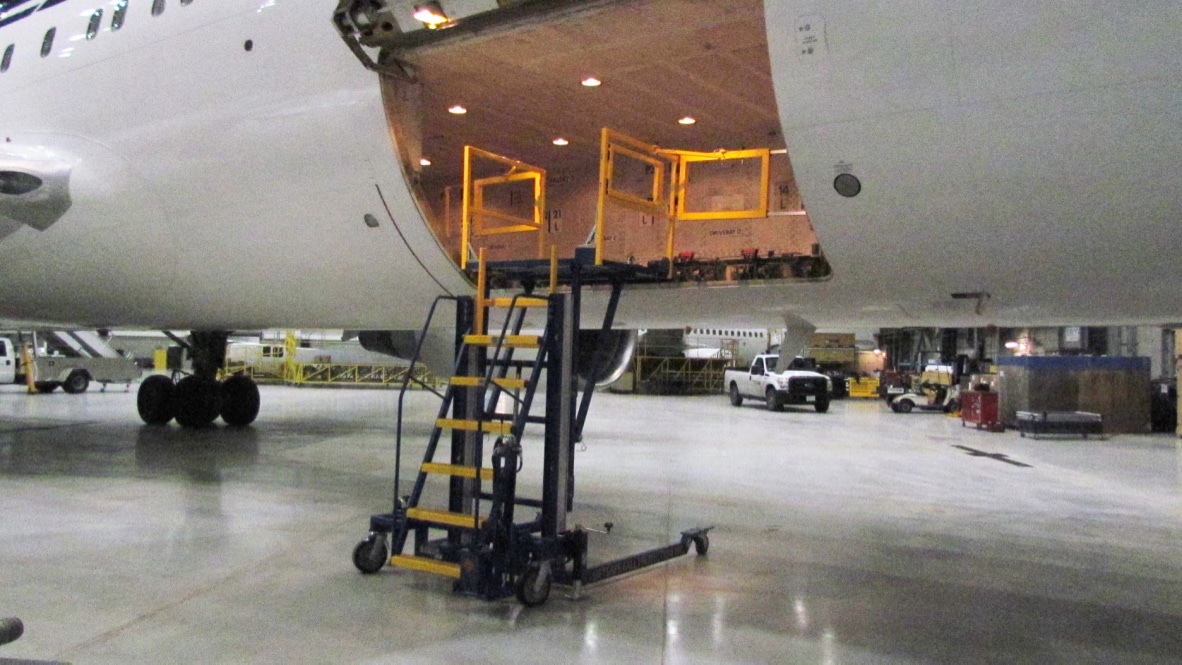

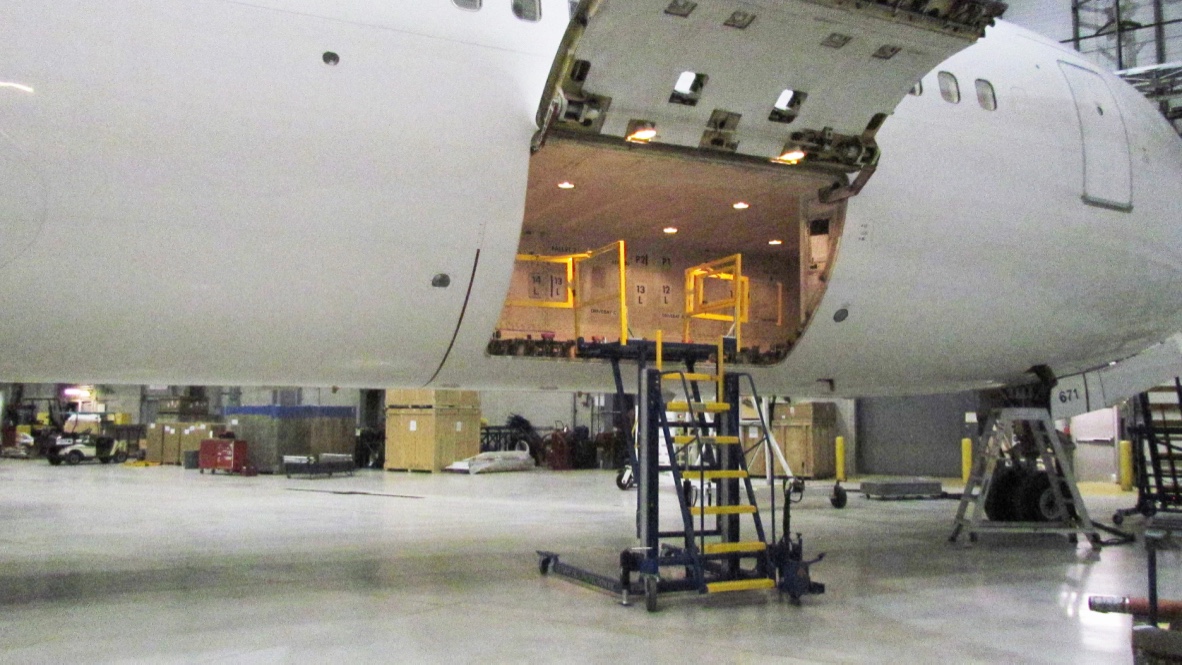

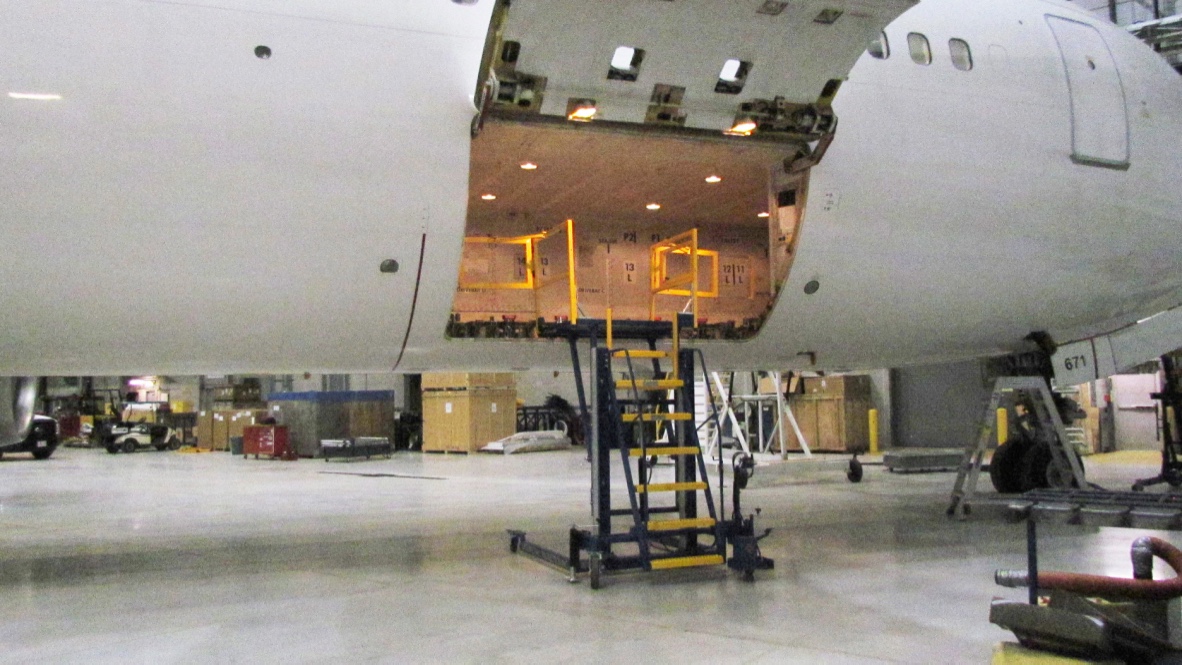

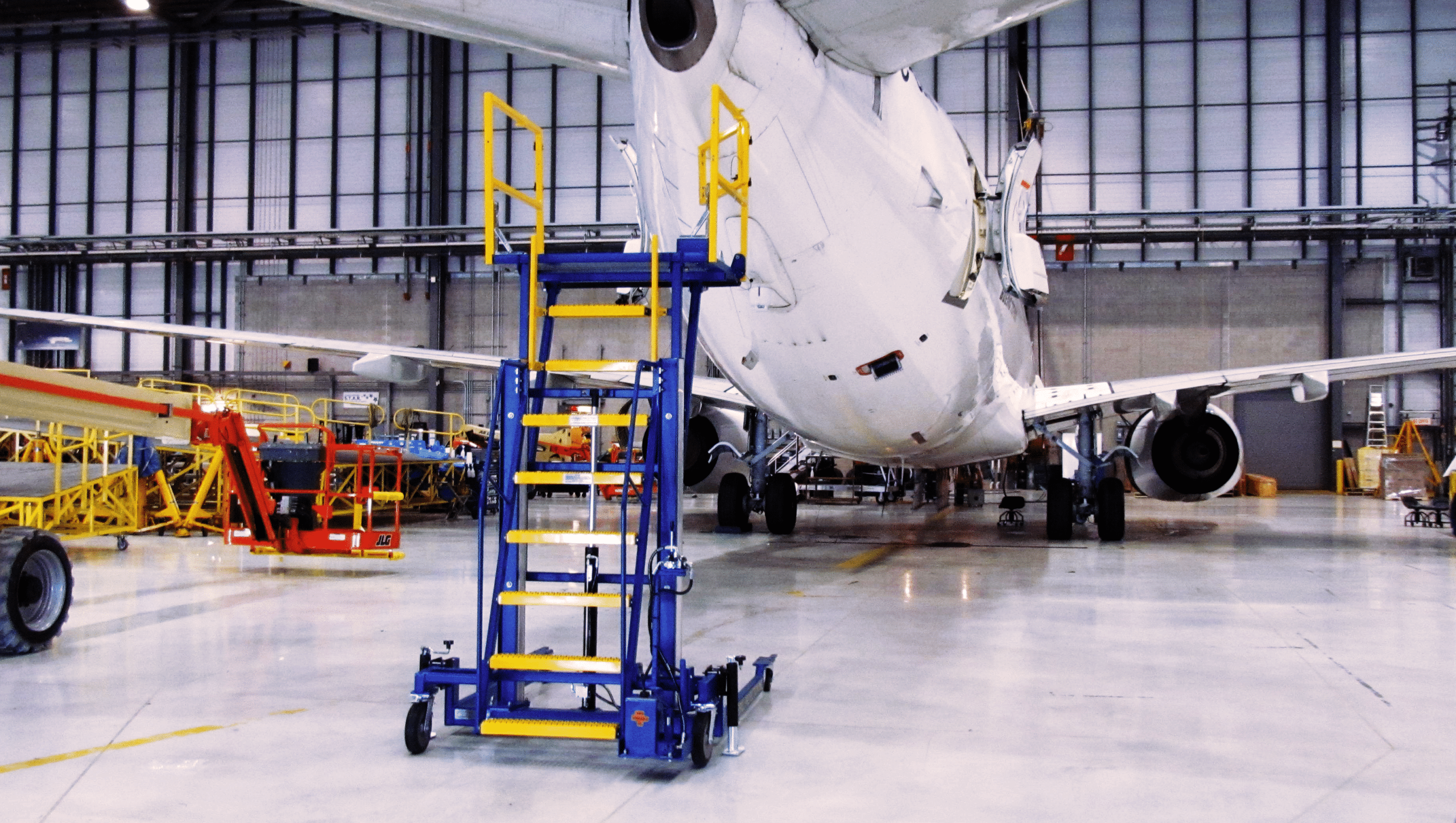

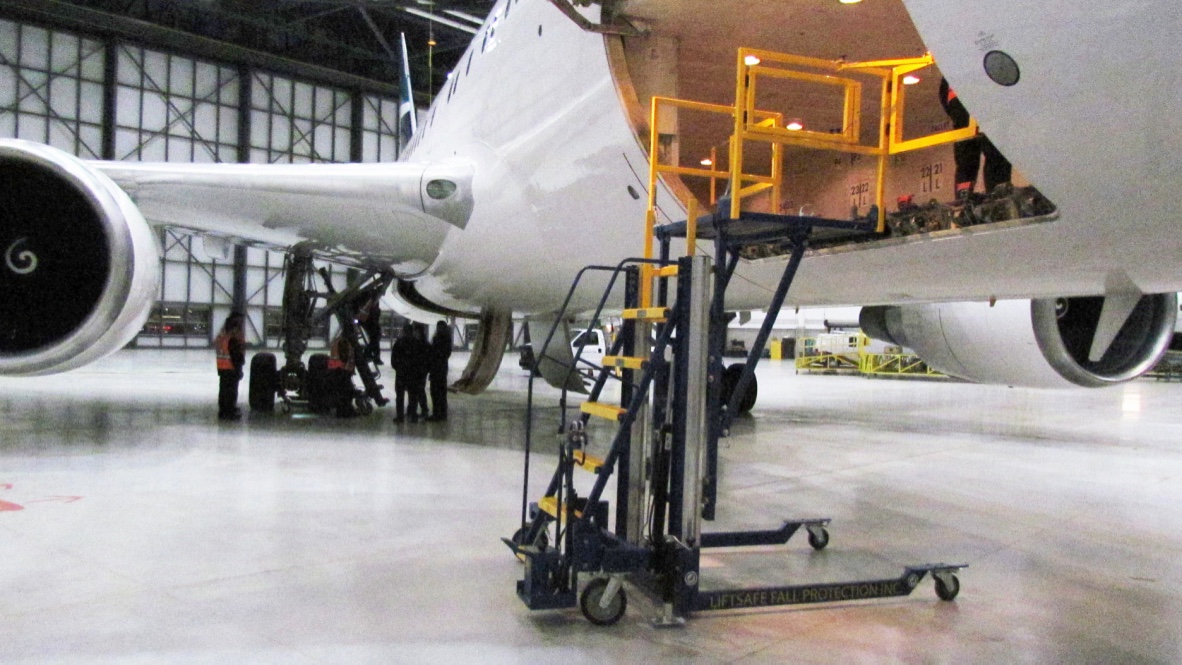

The Aviation Platform Stand has been designed for maintenance access points for a multitude of aircraft. The lowered position is designed to clear wheel well entry points and has been tested and is operational on both Airbus and Boeing wide body aircraft, including the B757. The unit is in service at a multitude of operators, MRO’S and manufacturers. Optional telescopic side rails ensure safety compliant access to the forward and aft lower cargo holds. The powder coat finish ensures corrosion resistance maintaining the longevity of your stand. The Aviation Platform Stand is hydraulically actuated via an ergonomically positioned foot pump and has collapsible guardrails. Anti-fatigue ladder steps thereby ensuring safety of your maintenance staff.
Our Professional Engineers can design custom models based on your specific requirements. The Aviation Platform Stand is designed and tested in accordance with ANSI-ASC A14.7 and BS EN 131.7 including CE Certification.
- Model #: DF071556-03
- Weight Capacity: 300 kg/660 lbs
Wheel Well and Cargo Access Stands (DF071556-03)
Specifications
Accessories
Aircraft Applicability
Specifications
- Part Number: DF071556-03
- Designed for: B717, B727, B737, B747, B757, B767, B777, B787, A300, A310, A318, A319, A320 Family, A321, A330, A340, A350, A380, Bombardier CRJ, Lockheed L-1011, DC-10/MD-10/MD-11, E-170, E-190, Douglas DC-8+, DC-9 Super 80/MD-80
- Movement: 1 Person
- Towing Speed: 10 KPH/6 MPH
- Footprint: 79 3/4″ x 105 1/2″ / 202.5cm x 267.9cm
- Shipping: 79 3/4″ x 80 1/4″ x 105 1/2″ x 1,200lbs / 202.5cm x 203.8cm x 267.9cm x 544.3kg
- Lowered Height: Low: 73″ / 185.4cm, High: 103″ / 261.6cm
- Weight Capacity: 300 kg/660 lbs
- Certification: ANSI-ASC A14.7, BS EN 131.7, CE, DIN EN 12312-8 & EN 1915-1
- Material: Steps: Aluminum, Frame: Steel
- Finish: Powder coated finish
- Number of users: 2 user
- Caster Details: Back: 8 / 20.3cm Split Castor with Brake and Swivel Lock, Front: 6 / 15.2cm with Swivel
- Controls: Hydraulic Foot Pump
- Fully Extended: Ladder: 56 Strokes
- Fall Restraint Anchor Points: Equipped
- Padding Material: Equipped
Accessories
- Air powered pump
- Custom heights and platform sizes
- Telescopic rails
- Tow bar
- Utilities Package
- Lowered front “legs” for the 787 main gear door
Aircraft Applicability
The Aviation Wheel Well and Platform Stand 03 has been tested and operational on the following aircraft:
- B747
- B757
- B767
- B777
- B787
- A320 Family
- A330
- A340
- A350
- A380
