Windshield Change Stand - Crane and Platform Aviation

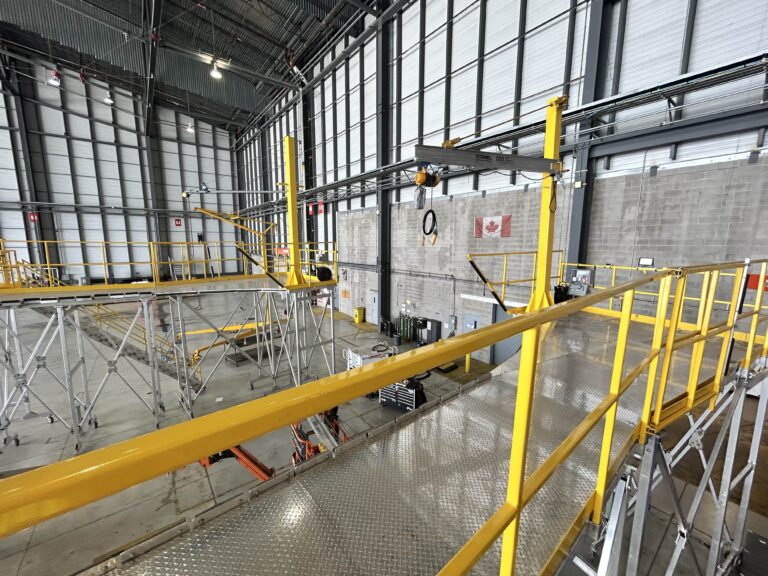

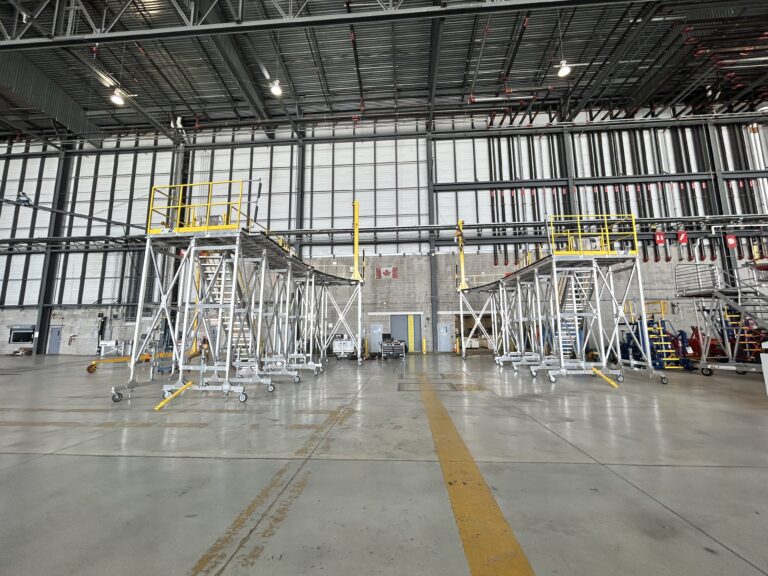

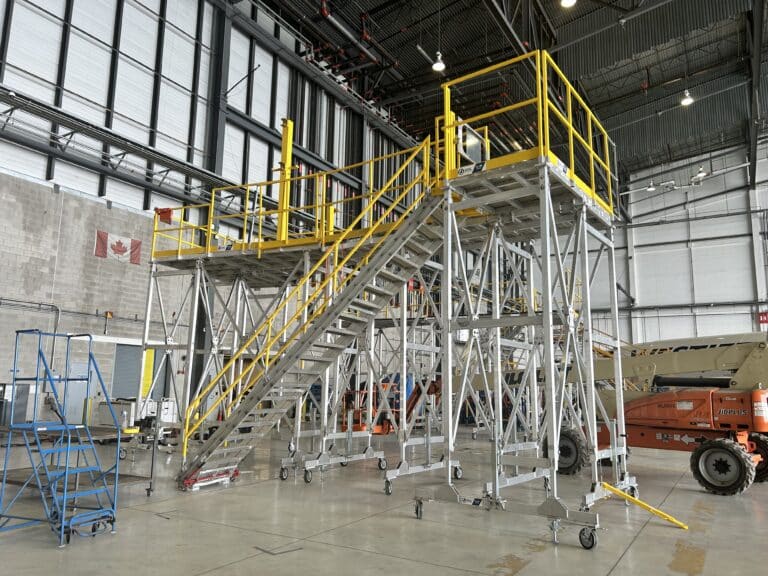

The Windshield Change Stand is engineered to simplify and enhance the safety of aircraft windshield replacement procedures. Liftsafe Fall Protection has developed nose docks for both sides of the aircraft, each equipped with a jib crane to support controlled handling and movement during installation. This system provides a safer and more efficient windshield change process and is ideal for use in hangar environments.
Our Professional Engineers can provide custom designs to meet your specific application requirements. The Windshield Change Stand is built and rigorously tested to meet applicable industry standards, including BS EN 131-2:2012, BS EN 131-7:2013, and ANSI A92:2020.
Product Accessories:
- 250 lbs capacity Jib Crane
- Electric Hoist (1,00 lbs capacity) with pendant control
- Adjustable Lights mounted to handrail
- Retractable hose reel for main air inlet
- Air manifold with quick connects
- 110V outlet box (weatherproof) – 3 Places
- Tool box mounted on Platform Handrail (2 places)
KEY FEATURES
Full Fall Restraint
Integrated fall protection to keep technicians secure during maintenance.
Safety First
Professionally designed to ensure safe and reliable operation.
Multi-Functional Design
Adaptable platform configuration for a wide range of aircraft tasks.
Custom Solutions
Tailored to meet specific operational and aircraft requirements.
Safe Maintenance Access
Provides secure and stable access to inspection and service areas.
Compliance
Engineered and tested to meet all aviation and workplace safety regualtions.
Durable Construction
Built from high-strength materials for demanding aviation environments.
Warranty Support
Available warranty options for long-term performance assurance.
Talk to a specialist today
Specifications
| Specification | Details |
|---|---|
| Model # | DF01581-01 |
| Application |
Aircraft maintenance (Mobile Work Platform). Adjustable height using hand operated lifting jacks. 24″ of travel is available: MIN Height = 13′-6″ / MAX Height 15′-6″ |
| Movement | Manual Push/Pull – Capacity: 1,000 lbs – 2 persons per side |
| Padding Material | Equipped with Rubber Bumpers all along aircraft access |
| Steps Material | Aluminum |
| Frame Material | Aluminum |
| Finish | Bare Aluminum (Frame & stairs) / Powder Coated Yellow (all hand and guard rails) |
| Certifications |
BS EN 131-2:2012 BS EN 131-7:2013 ANSI A92:2020 |
| Caster Details |
Swivel Caster with *” diameter x 2″ wide Twin Polyurethane (70D) wheels on Aluminum Core. 1250 lbs load capacity per caster. |
Regulations & Certifications
| OSHA |
| ANSI |
| BS EN 131.7 |
| CE |
| DIN EN 12312-8 |
| EN 1915-1 |
Your Perfect Solution Awaits!
