Engine Access Stand (DF071554-07-12)
This Engine Access Stand is specifically designed for the B777-9. As with all Liftsafe stands, it features anti-fatigue ladder steps rather than narrow rungs, ensuring comfort when changing LRUs, adjusting components, or connecting/disconnecting engines and nacelles. The stand also provides access to the GE90-powered 777 Legacy PDOS (Powered Door Opening System). Design improvements include a lighter structure, smaller footprint, and optimized geometry for enhanced functionality.
Height and angle adjustments allow the B777-9 Engine Access Stand to accommodate the varied positions frequently required during aircraft servicing. The stand features aluminum construction for easy movement and a corrosion-resistant powder-coated finish for durability.

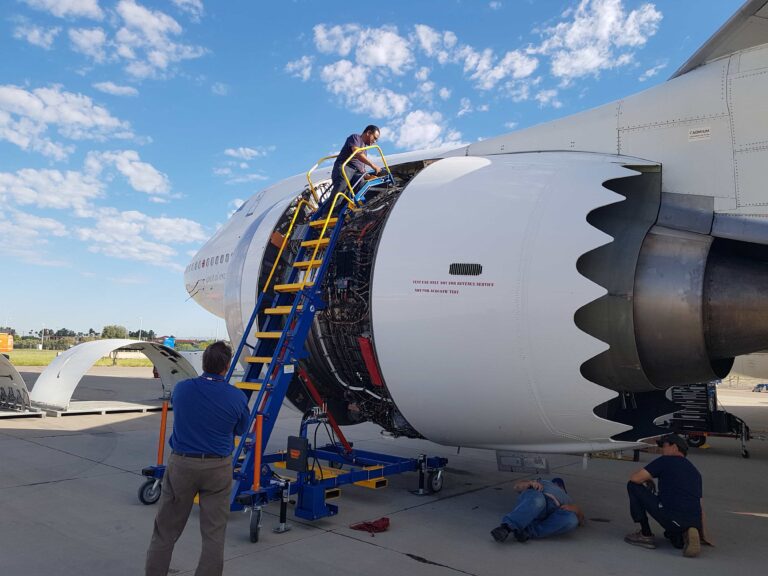

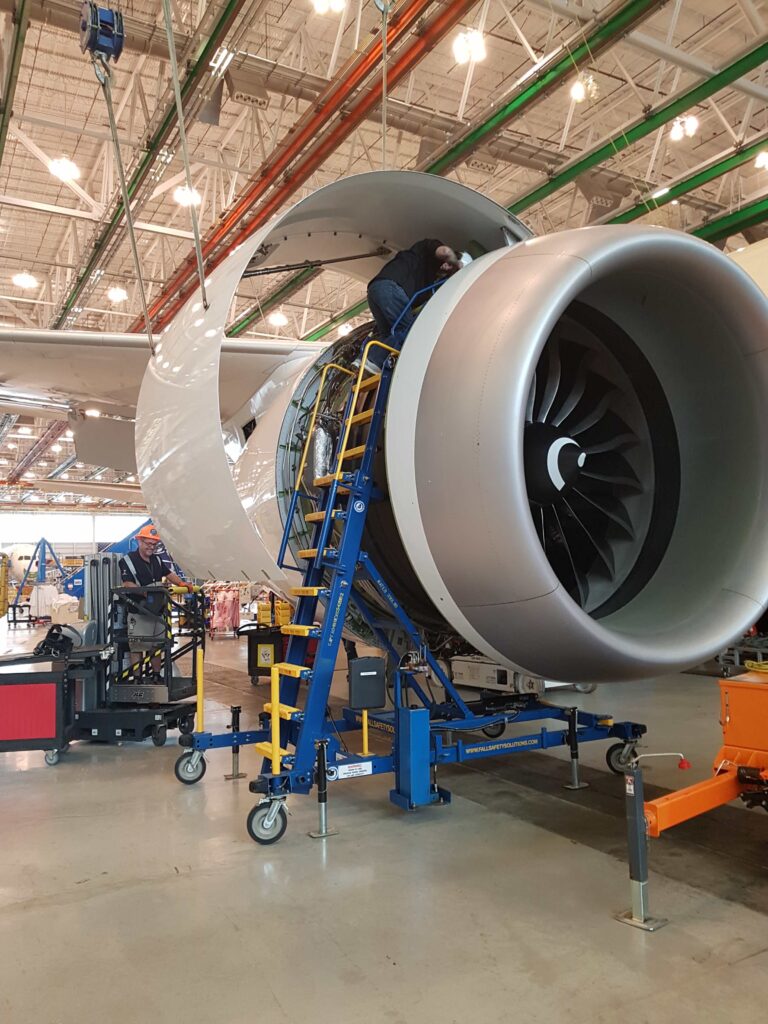

The B777-9 Engine Access Stand provides safe access to nose cowls, fan cowls, and pylon disconnect zones on Pratt & Whitney, GE Aviation, and Rolls-Royce engines, enabling maintenance in traditionally difficult under-cowling areas. It also supports access to forward and aft pylon service points, refuel panels, and under-wing zones.
For increased safety and mobility, optional accessories include four corner-leveling jacks, fold-away tow bars, and lift-truck fork pockets. The B777-9 Engine Access Stand is designed and tested in accordance with ANSI-ASC A14.7 and BS EN 131.7, and includes CE Certification.
- Air powered pump
- Fork pockets
- Fold away tow bar
- Level jacks
- Platform Adaptors: Plugin platform in place of the curved section on all current engine stands
- Straight extension
- Utilities Package
- 777X pylon extension
- B747
- B757
- B787
- B767
- B777 (w/ E tension)
- A310
- A320
- A330
- A340
- A350
- A380
- A400
- Custom
- 777 Legacy
KEY FEATURES
Full Fall Restraint
Integrated fall protection to keep technicians secure during maintenance.
Safety First
Professionally designed to ensure safe and reliable operation.
Multi-Functional Design
Adaptable platform configuration for a wide range of aircraft tasks.
Custom Solutions
Tailored to meet specific operational and aircraft requirements.
Safe Maintenance Access
Provides secure and stable access to inspection and service areas.
Compliance
Engineered and tested to meet all aviation and workplace safety regualtions.
Durable Construction
Built from high-strength materials for demanding aviation environments.
Warranty Support
Available warranty options for long-term performance assurance.
Talk to a specialist today
Specifications
| Specification | Details |
|---|---|
| Model # | DF071554-07-12 |
| Application |
Engine Access Engines (Under “C” Duct) Outboard Engines Pylons Wing Refuel Panel Bulk Cargo Aft Pressure Bulkhead Access Panel APU Servicing Wing Tip Nav Lights Flap Canoes / Fairings Wing Landing Lights Passenger Windows Wing Access Main Entry Door Sills Windshield Inspections Pitot Probe Tube Inspections/Replacements AOA/True Airspeed Probes Inspections / Replacements Static Port Inspections/Replacements Trailing Edge Actuator Inspections/Replacements |
| Aircraft Type |
B747 B757 B787 B767 B777 (w/ E tension) A310 A320 A330 A340 A350 A380 A400 Custom 777 Legacy |
| Movement | 1 Person |
| Towing speed | 10 KPH/6 MPH |
| Footprint | 87 ¾″ x 122 7/8″ / 223.9cm x 312.1cm |
| Shipping (DIMS) | 88” x 52″ x 108 1/4″ x 1,150 lbs / 223.5cm x 132cm x 274.9cm x 521.6kg |
| Height |
Low: 126 1/2″ / 321.3cm, High: 239 1/4″ / 607.6cm |
| Weight Capacity | 150 kg/330 lbs |
| Certifications |
ANSI-ASC A14.7 BS EN 131.7 CE DIN EN 12312-8 EN 1915-1 |
| Angles | 52-75 Degrees |
| Material |
Ladder: Aluminum Frame: Aluminum |
| Finish | Powder Coated Finish |
| Number of Users | 1 User |
| Caster Details | 8″ / 20.3cm Split Castor with Brake and Swivel Lock |
| Controls | Hydraulic Foot Pump |
| Fully Extended |
Ladder: 57 Strokes Tilt: 23 Strokes |
| Fall Restraint Anchor Points | Equipped |
| Padding Material | Equipped |
Regulations & Certifications
| OSHA |
| ANSI |
| BS EN 131.7 |
| CE |
| DIN EN 12312-8 |
| EN 1915-1 |
Your Perfect Solution Awaits!
Projects
Engine Access Stand built for Rolls Royce Aircraft Engine
A recent aviation project has our team building Engine Access Stands for Rolls-Royce B787 and B767 aircraft, improving comfort, safety, and functionality.

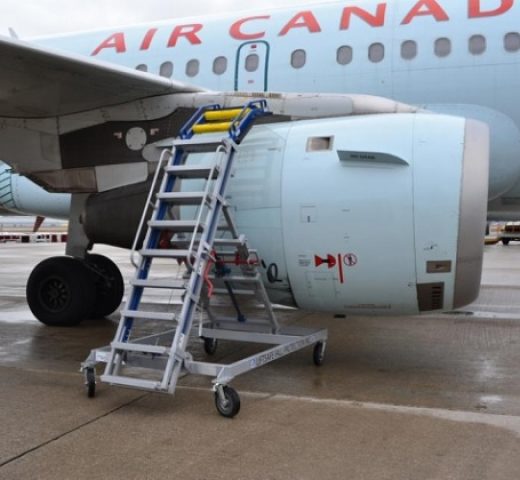

Engine Access Stand built for A320 Aircraft at Air Canada
The Engine Access Stand, in use on Air Canada’s A320, provides safe, ergonomic under-cowl access and versatility across multiple aircraft for efficient maintenance.

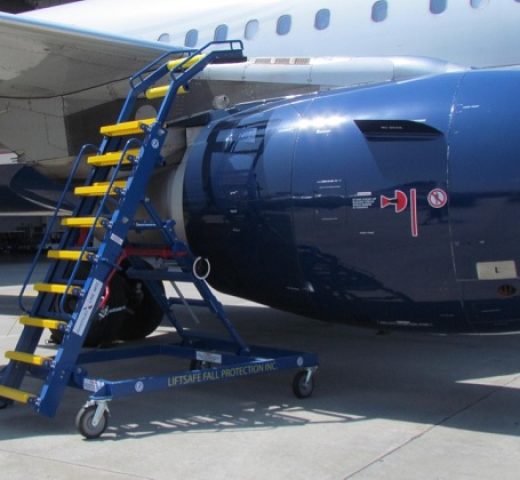

Engine Access Stand built for American Airlines
The re-designed Engine Access Stand for American Airlines provides safe, adjustable under-cowl access and is compatible with most wide- and narrow-body aircraft.

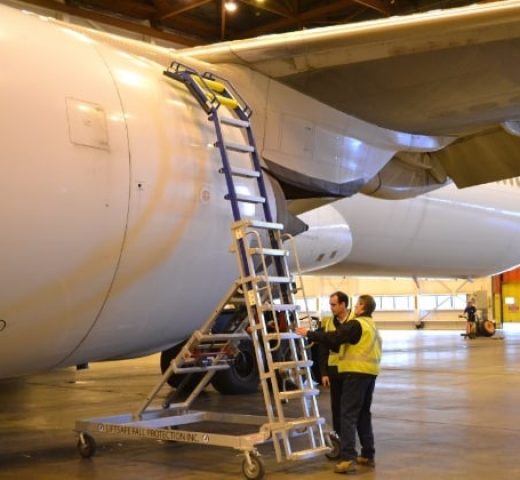

Engine Access Stand built for B777 Aircraft at Air Canada
