Roofguard Rooftop Guardrail

The RoofGuard Classic system is designed to protect the most common working at heights hazard, a rooftop or any other exposed edge. Distance from the edge of an elevated surface is the key factor when it comes to this type of hazard. If someone is within 6 feet of the edge of a rooftop or other exposed edge that is 3 metres (10 feet) or more above the ground, fall protection is required. Some scenarios have a lower height requirement (above dangerous machinery, hazardous materials, etc.) which we have covered in an article called Working at Heights Legislation and Guardrail Fall Protection in Canada.

What is RoofGuard Rooftop Guardrail (RoofGuard Classic)?

The RoofGuard Classic Guardrail system is a modular, non-penetrating system, designed to eliminate the potential hazard of falls over unprotected edges on a rooftop or elevated surface. With simplicity in mind when developed, this rooftop guardrail system can be quickly and easily assembled and installed on most rooftops. Because RoofGuard Classic is counter weighted, it requires no welding, drilling, or bolting into the actual roof structure and is designed to rest on top of it while still meeting lateral force requirements set out in the appropriate standards and laws.

RoofGuard can be reconfigured during installation in order to allow it to work in almost any situation. Our Professional Engineers or fall protection specialists can visit your facility to ensure that you have the proper design for your rooftop.

RoofGuard has been designed to meet or exceed all major North American safety standards/regulations including Ontario MOL requirements, ANSI, OSHA, Canadian OHS & WorkSafeBC.

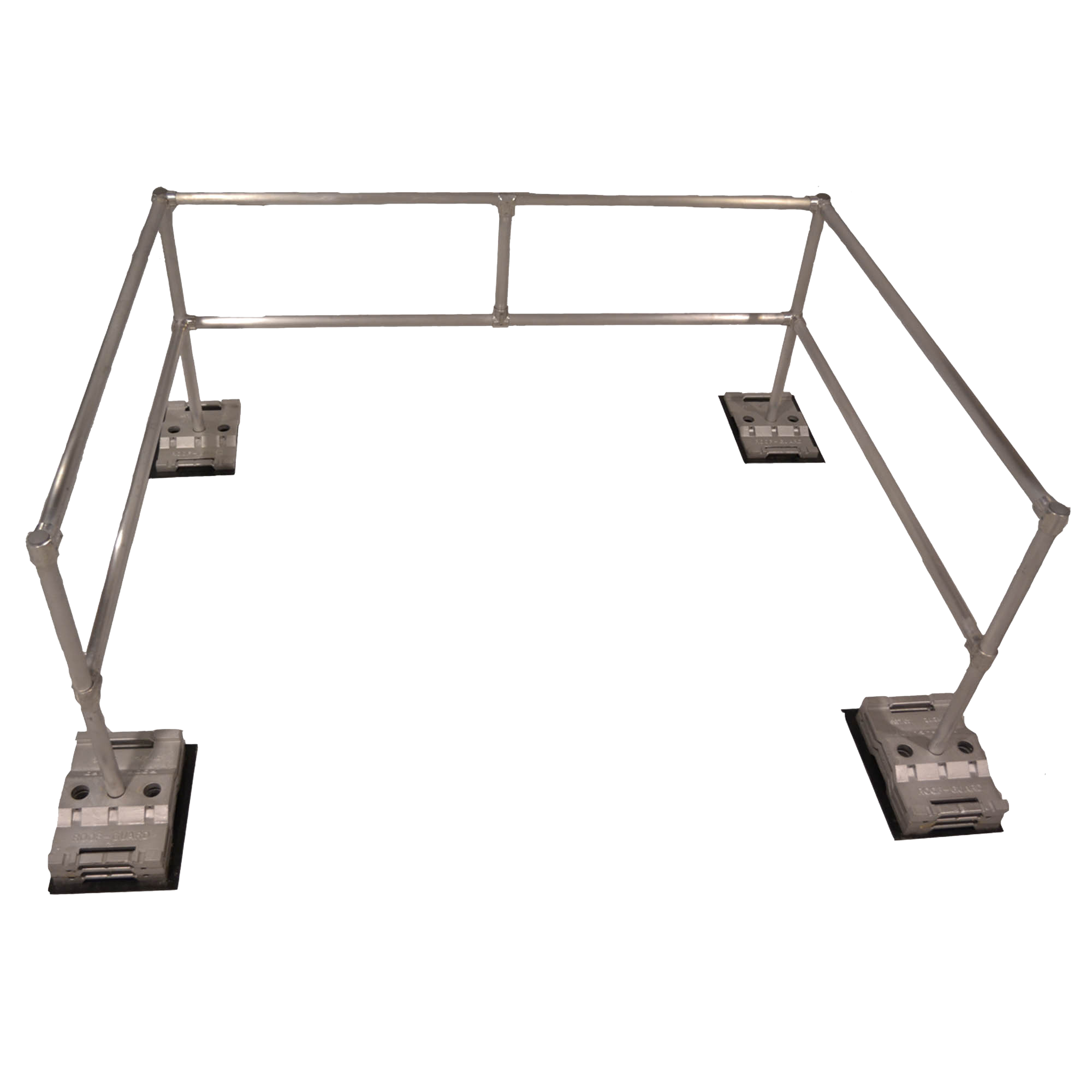

9 Foot Kit | RoofGuard Classic

Rooftop Guardrail with nine feet of leading edge Fall Protection. It sits on top of the roof membrane, and is a passive fall protection solution. The nine foot standard kit is ideal for providing reliable fall protection around HVAC units, vents, near access ladders, antennas, valves, solar panels, or simply near frequently travelled areas that require routine maintenance.

9' standard guardrail kit | fall protection
RoofGuard 12 foot standard kit | fall protection

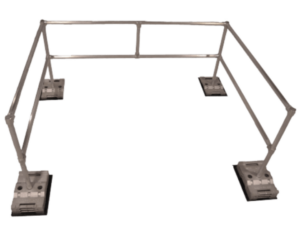

12 Foot Kit | RoofGuard Classic

Twelve feet of leading edge Fall Protection. The RoofGuard 12 foot kit is ideal for providing reliable fall protection around HVAC units, vents, near access ladders, antennas, valves, solar panels, or near exposed areas that require routine maintenance.

This system is equipped with a variable fitting in the centre to allow for straight or 90 degree setup, two 6′ returns (ballast), aluminum handrail tube, cast aluminum magnesium fittings, base plates, rubber pads and an installation tool.

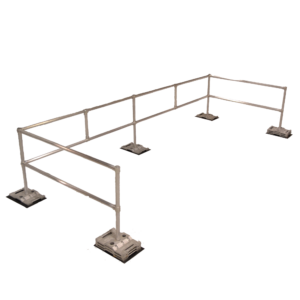

18 Foot Kit | RoofGuard Classic

Our most popular rooftop guardrail design offers eighteen feet of leading edge Fall Protection, with two six foot sections for weighted ballast. The hinged, variable fitting in the centre of the 18 ‘ section allows for complete versatility when installing the system. It can be straight, at 90 degrees or anything in between.

The best way to ensure the safety of your workers is to plan ahead and implement a fall prevention solution within the areas of your rooftop that require access. Custom configurations available depending on your unique application.

rooftop guardrail standard 18 foot kit | RoofGuard
27' Guardrail Kit | Fall Protection

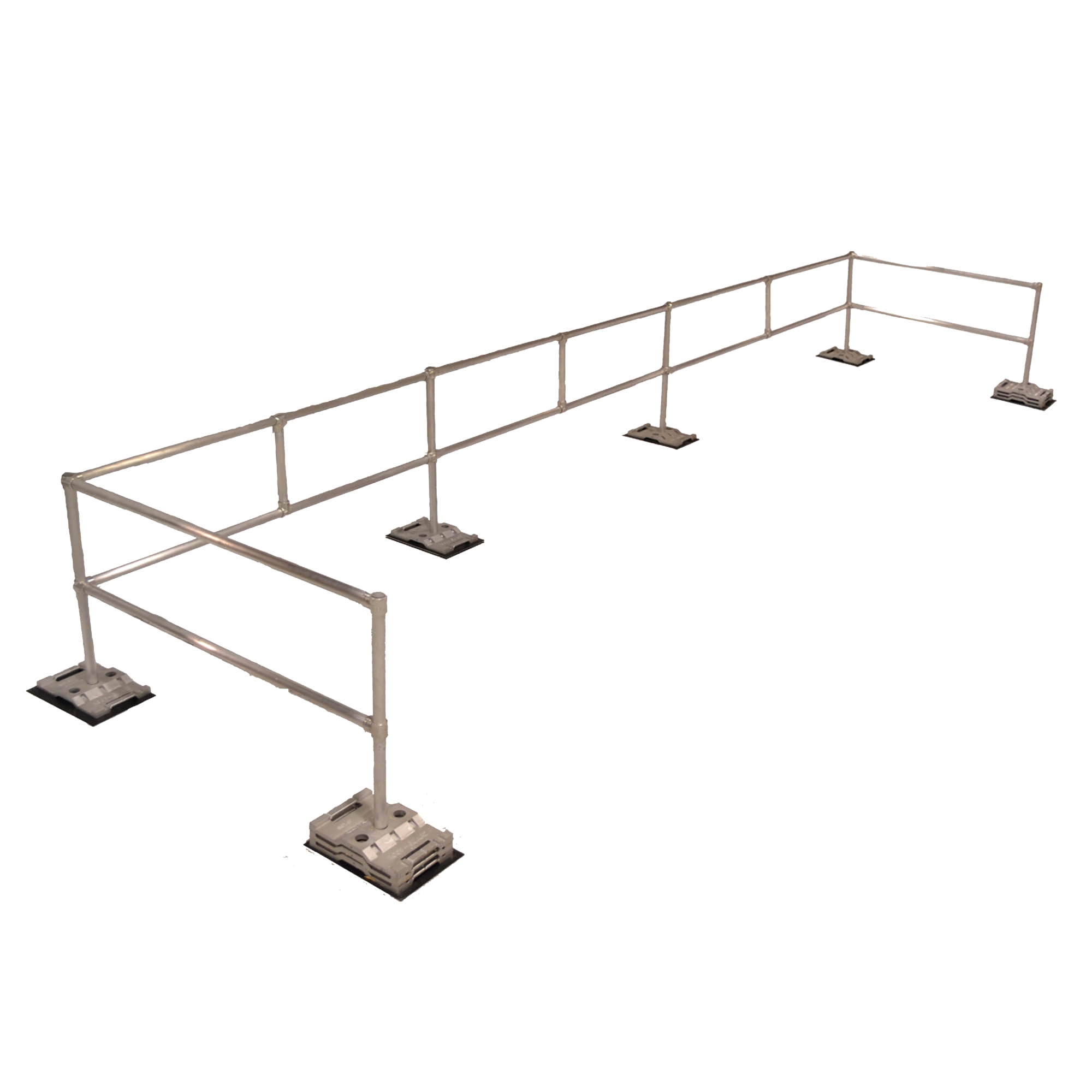

27 Foot Kit | RoofGuard Classic

Twenty-seven feet of leading edge Fall Protection with two six foot sections for weighted ballast. Two hinged fittings allow for complete versatility when installing the system. It can be straight, at 90 degrees, or anything in between, depending on your requirements.

Our largest RoofGuard Rooftop Guardrail System and it is designed to allow for the maximum amount of both linear coverage and flexibility, ensuring that your employees or contractors are protected around a wide variety of different potentially dangerous situations on your rooftop. These are typically used for edges that have multiple units that are unprotected in a row.

Custom | RoofGuard Classic

Our custom kits are designed for multiple application purposes so that you have a readily available system to ensure that your rooftop is safe. For applications that require something unique, we have our custom rooftop guardrail system because everyone should be able to work safely and with confidence, whether they are in an office or on a rooftop.

These rooftop guardrail systems were designed with one thing in mind, to have a rooftop guardrail system available for everyone, because safety should never take a back seat.

rooftop guardrail angled 18 foot kit | RoofGuard

RoofGuard Classic Specifications

Kit Size Part Number Height Coverage Diameter of Rail Unit Weight
9 Feet RGC-KIT-09 42" from the ground to the top of the top rail 9 linear feet of coverage 1.9" OD Aluminum Pipe 450 lbs.
12 Feet RGC-KIT-12 R 42" from the ground to the top of the top rail 12 linear feet of coverage 1.9" OD Aluminum Pipe 500 lbs.
18 Feet RGC-KIT-18 42" from the ground to the top of the top rail 18 linear feet of coverage 1.9" OD Aluminum Pipe 525 lbs.
27 Feet RGC-KIT-27 42" from the ground to the top of the top rail 27 linear feet of coverage 1.9" OD Aluminum Pipe 600 lbs.

Fall Protection Regulations in Canada

Jurisdiction Regulation
Federal (Canada) Canada Occupational Safety and Health Regulations, SOR/86-304, Sections 12.01 to 12.09
Ontario
  • Construction Projects, O. Reg. 213/91 Sections 26 - 26.9
  • Industrial Establishments, R.R.O. 1990, Reg. 851 Section 85
  • Quebec
  • Regulation respecting occupational health and safety, O.C. 885-2001 Division XXX
  • Means and Equipment for Individual and Group Protection Sections 347 - 349.1
  • Safety Code for the construction industry R.R.Q. 1981, c. S-2.1, r. 6 Division II, General Provisions Sections 2.9.1 to 2.9.3, Safety measures
  • Alberta Occupational Health and Safety Code, 2009 Part 9, Fall Protection Sections 138 - 161
    British Columbia Occupational Health and Safety Regulations, B.C. Reg. 296/97 Part 11, Fall Protection, Sections 11.1 to 11.10
    Manitoba Workplace Safety and Health Regulation, Man. Reg. 217/2006 Part 14, Fall Protection, Sections 14.1 to 14.23
    New Brunswick General Regulation -N.B. Reg. 91-191 Part VII, Protective Equipment, Sections 49 - 51
    Newfoundland and Labrador Occupational Health and Safety Regulations, 2012, N.L.R. 5/12 Part X, Fall Protection, Sections 138 to 146
    Nova Scotia Workplace Health and Safety Regulations, N.S. Reg. 52/2013 Part 21, Fall Protection, Sections 21.1 to 21.4
    Prince Edward Island Fall Protection Regulations, EC2004-633
    Saskatchewan Occupational Health and Safety Regulations, 1996, R.R.S., C. O-1.1, R. 1 Sections 102 to 107, and Sections 116 to 116.3
    Northwest Territories
  • Occupational Health and Safety Regulations, R-039-2015 Part 7
  • Personal Protective Equipment, Sections 103 to 109 and Part 9
  • Safeguards, storage, warning signs and signals, Sections 118 to 124
  • Nunavut General Safety Regulations, R.R.N.W.T. 1990, c. S-1, Part 7 Sections 104 to 109, and Part 9, Sections 118 to 122
    Yukon
  • Occupational Health and Safety Regulation, O.I.C. 2006/178
  • Protective Equipment and Clothing - Fall Arrest Sections 1.37 to 1.43
  • Resources

    Roof Access Ladder Legislation in Canada

    An article that breaks down the legislation regarding roof access ladders.

    Working at Heights Legislation in Canada

    An article that breaks down the existing legislation and different solutions offered.

    RoofGuard Standard Kits for HVAC Maintenance Safety

    Case Study for RoofGuard Classic as a solution for safe HVAC maintenance.

    Request a Quote

    Frequently Asked Questions

      Acccording to the law:
      A worker shall be adequately protected by a guardrail system. Requirements for guardrails are found in the regulation for construction projects (s.26.1). The regulation for industrial establishment (ss. 13 and 14) contains provisions for permanent guardrails. The regulation for construction projects provides that if it is not reasonably possible to install guardrails, a worker must be adequately protected by at least one of the following methods of fall protection:
      • Safety net
      • Travel Restraint system
      • Fall Arrest System
      • Fall Restricting System
      Acccording to the law:
      Occupational health and safety laws generally require action when a worker has the potential to fall about 3 metres (10 feet). In most cases, fall protection is required when:

      • Other means of fall protection are not available or possible, such as guardrails Working at a height of 3 metres or more (permanent and/or temporary work areas)
      • Working at a height of less than 3 metres when the surface below could cause a greater injury risk than just the fall (e.g. machinery; risk of drowning in water or other liquid; open tanks, vats, or pits containing hazardous materials; materials can shift)
      • A worker may fall through an opening in the work surface
      • It is determined that fall protection is necessary

    RoofGuard has been tested to meet or exceed American (OSHA), Canadian (CCOHS) and Provincial (OHSA in Ontario and each equivalent in other provinces) safety regulations.

    RoofGuard has also been tested to meet or exceed the engineering standards created by CSA and ANSI.

    This would include comparisons between; guardrails vs harness, guardrails vs fall restraint or guardrails vs fall arrest.

    • Passive fall protection is the type of protection that does NOT require any action by people. Examples include: Guardrails, Safety Nets, etc.
    • Active fall protection is the type of protection that requires training and direct connection to an engineered fall protection system or anchor point. Examples include: Body Harnesses and Lanyards, Anchor Points, etc.
    • General rule: Passive solutions are preferred to active ones. They represent engineering controls that keep people safe regardless of training level and awareness of a hazard.

    Upfront costs of a guardrail system are slightly more than horizontal lifelines. However, when you add in the cost of certifying employees for working at heights (every three years), anchor point inspections (yearly), lanyard and harness inspections (yearly), recordkeeping (ongoing) and other related inspections, the overall cost of an installed guardrail system is much less.

    There is also the amount of time and resources that must be devoted to making sure these are all adhered to. Whereas, a guardrail system can be set up once and you are instantly compliant.

    RoofGuard is incredibly simple to install and can be done easily by an inexperienced worker with simple hand tools.

    Each system has labels that contain a QR code that links to a series of videos showing exactly how to install the system for maximum time savings.

    Each RoofGuard system comes with a stamped engineering drawing back by the in-house engineering team at Liftsafe Fall Protection.

    Yes. RoofGuard comes standard as an aluminum system that is grey but some clients prefer it to be painted safety yellow. This is done in-house with a powder coated paint that is weather resistant.
    No. RoofGuard must not be used as an anchor. This is stated explicitly in the RoofGuard installation manual among other safety requirements.
    Yes. This depends on how steep the slope is for standard systems (it must meet the standards and regulations for sloped roofs). However, custom systems are available for multiple applications including sloped roofs.
