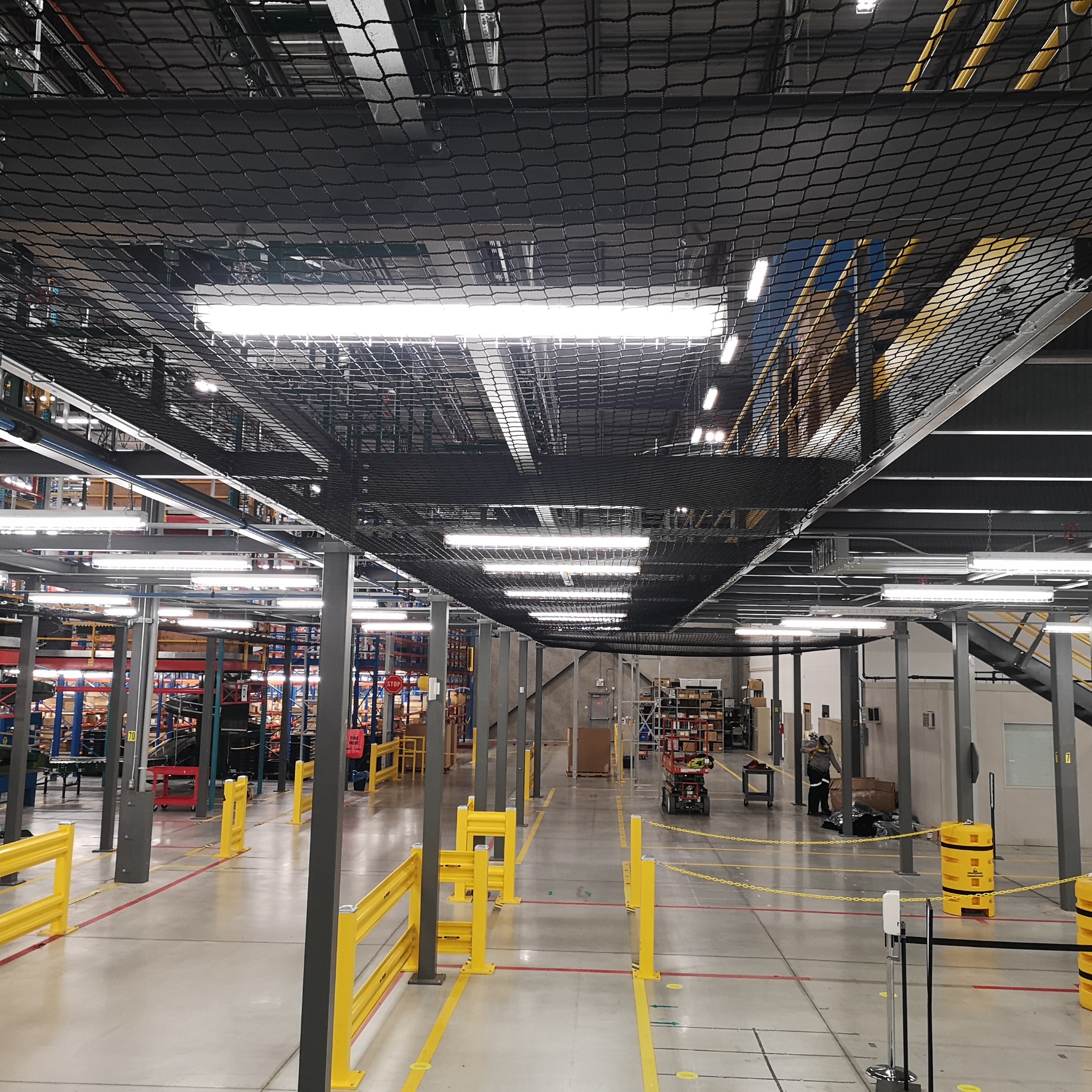

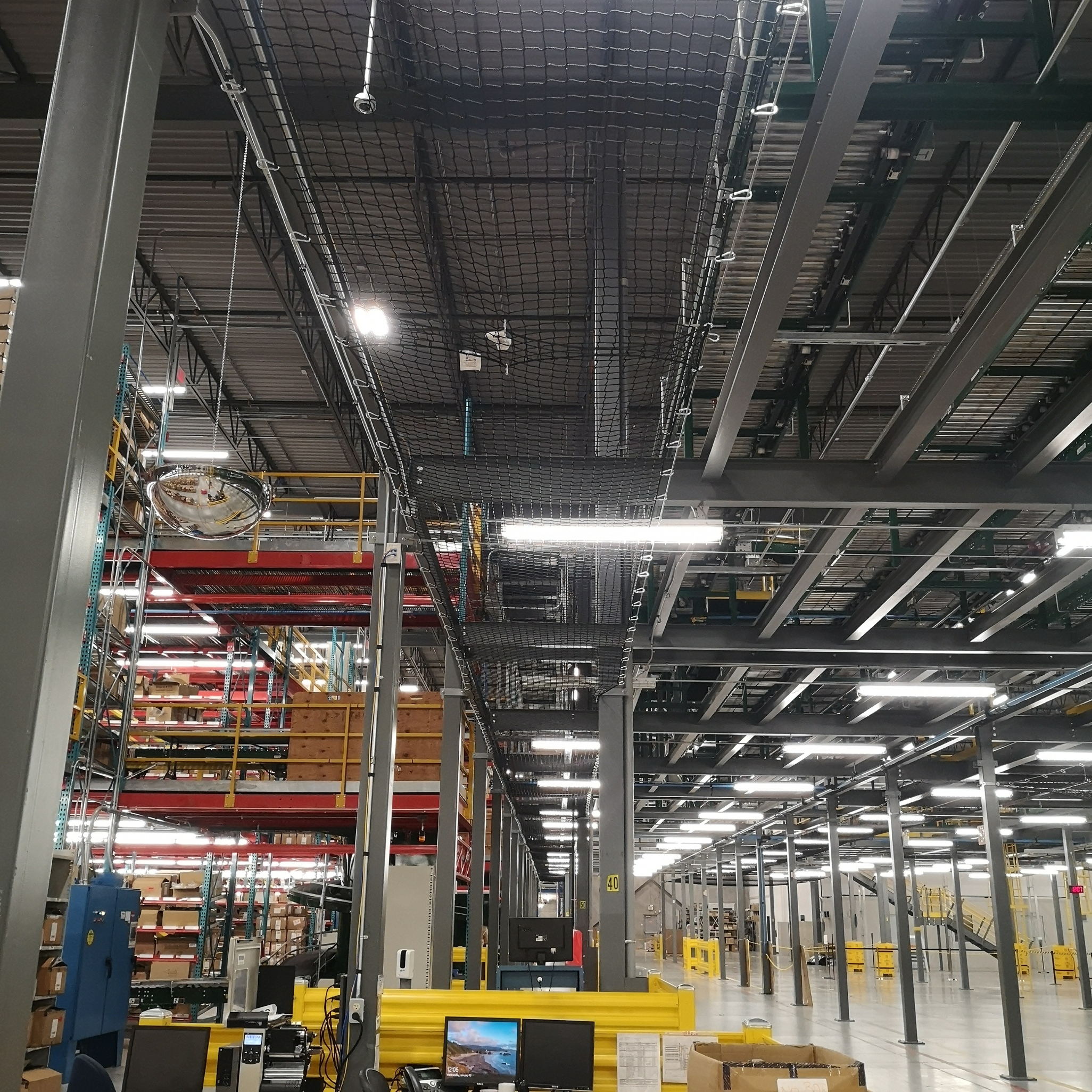

Horizontal Rack Netting Systems (RackGuard)
Our horizontal rack netting systems are designed to ensure the safety of workers who have to enter racking bays to access product and are at risk of having a box fall from an upper level.

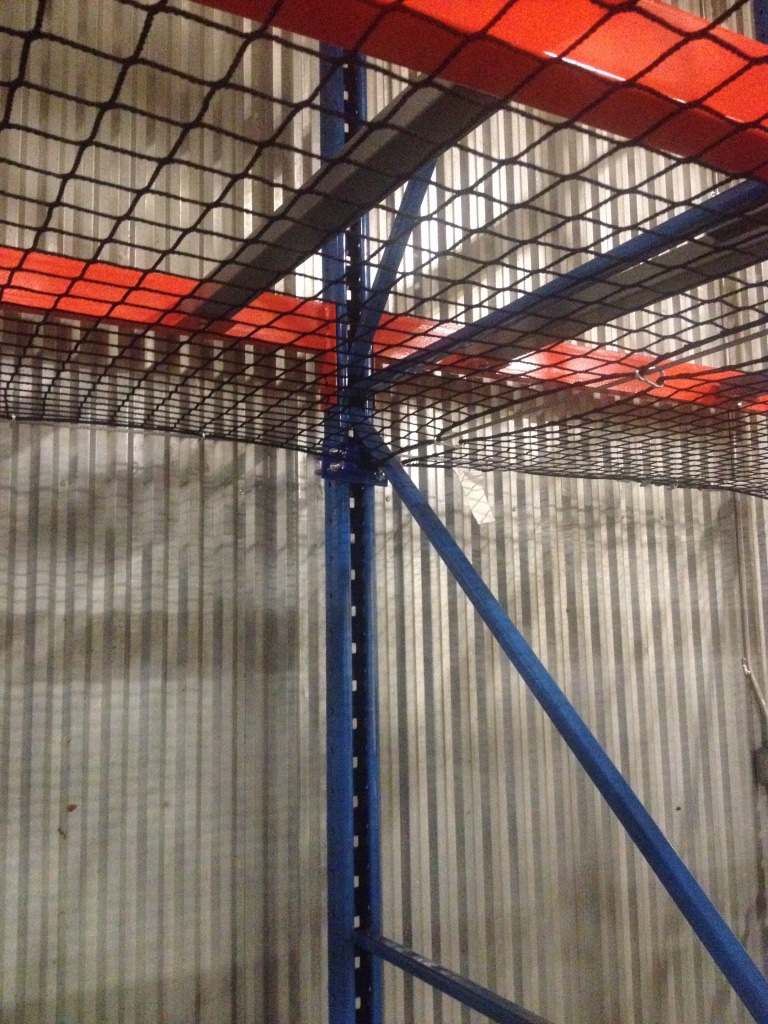

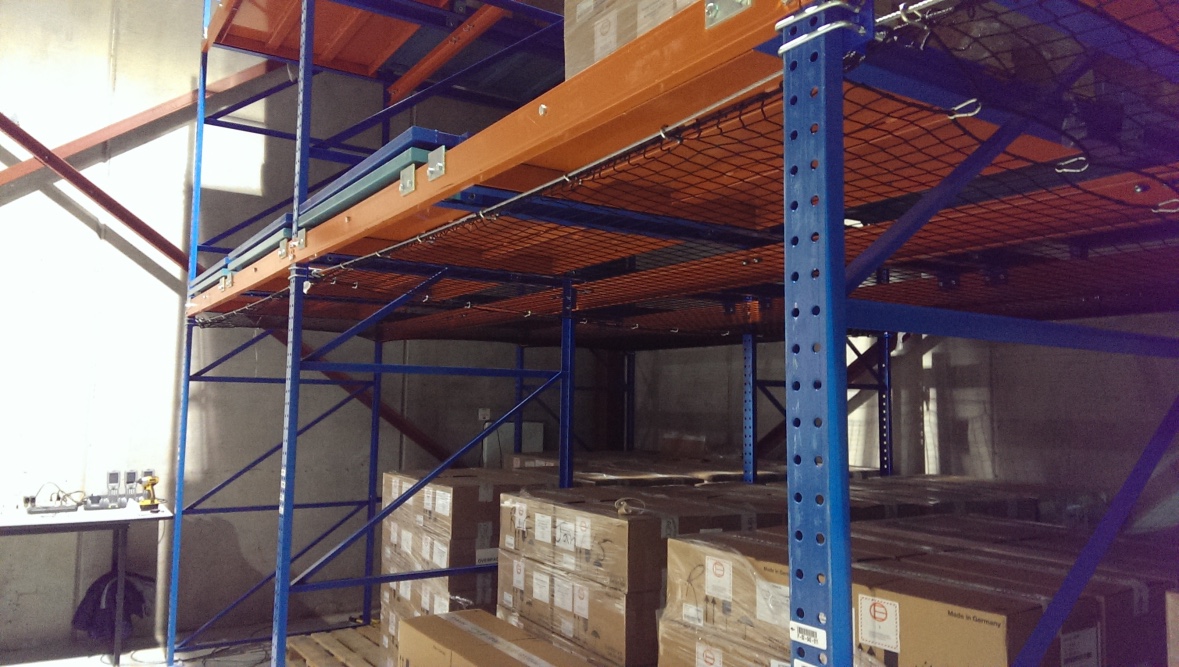

This custom configuration utilizes specific brackets for mounting inside the rack. Out custom horizontal netting brackets mount inside the racking system to hang our standard 2500 lbs pallet net. Custom options are available.
Why Our Industrial Rack Netting is the Solution for you:
OFFSET BRACKET
The flue space between racking systems is often an area that sees a high volume of product falls and damages that workers are unable to access. Our Rack Netting System can be installed within this space to help reduce product loss and keep product from getting mixed up with another pallet load.
- Available offset brackets: 2”, 3”, 4”, 6”, 9”, 10”, 12” & custom sizes
- Flush mount options available
NETTING CABLE
- 1/4” aircraft cable (for up to 3000 lbs pallets)
- 3/8” (3500 – 5000 lbs pallet load)
NETTING PANEL
- 2500 lbs net – 2” square, industrial safety netting
- 3000 lbs net – 2” square, industrial safety netting
- 6000 lbs net – 2-½” square, fall arrest netting
EXTENSION BRACKET
- Available from 1 ft up to 6 ft in height
STANDARD RIGGING
- Wire rope clips
- Thimbles
- Turnbuckles
- Eyebolts
- Safety snap hooks
Fire retardant in accordance with NFPA701
Custom net sizes based on each project
Material
- 2500 lbs net – nylon
- 3000 lbs net – nylon
- 36000 lbs net – HTPP
Knotless netting, sewn rope border
U.V. protection
Colour: black (custom available for large orders)
All rack storage applications including:
- Warehouse
- Storage
- Manufacturing
RackGuard netting panels are treated to meet NFPA 701 standards for fire-retardancy and have been tested and rated in accordance with ANSI A10.11 and OSHA safety standards. This includes the complete system with all of the hardware installed onto a racking system and tests made to simulate a real-case product falls.
View our complete product selection:
Frequently Asked Questions
What if space is an issue? Will the netting fit between racks?
We have different lengths of offset brackets to allow our system to fit in the tightest of spaces.
What if I need coverage above my existing rack frame?
We offer rack extensions that incorporate our offset bracket so that you can add height to your rack frames and protect your highest pallets.
Is there an advantage to netting over wire mesh?
Our netting is designed to catch any fallen product or pallet without any damage to your racking. Wire mesh is typically connected directly to your racks and doesn’t have flexibility. Over time, as equipment or products hit against the wire, it can get damaged and even put extra strain on your racking.
Is this something I could install on my own?
Yes, all of our systems include a user manual, custom drawing, and detailed installation instructions. If needed, we offer installation services.
What if I need protection on the side of my rack, or underneath the bays?
We offer complete rack netting systems to protect the back and sides of your rack, as well as horizontal netting to protect tunnel bays or pic modules.
When would I need netting on my racks?
Netting is used anytime a fall hazard may exist. It is used along walkways and isles to protect workers, but is often used in the flu space to protect the product itself from falling and being damaged.
What do I need to provide to get a quote?
Get in touch with our sales reps, and they can provide you with a Quote Request Form that is easy to fill out. The form asks for information such as the width of your bays, the height of your rack frames, and the weight of the pallets you are looking to protect.
